Silver Fuel Hose Oil Gas Air Line AN6-AN8-AN10 Stainless Steel Braided BOOSTED

Description

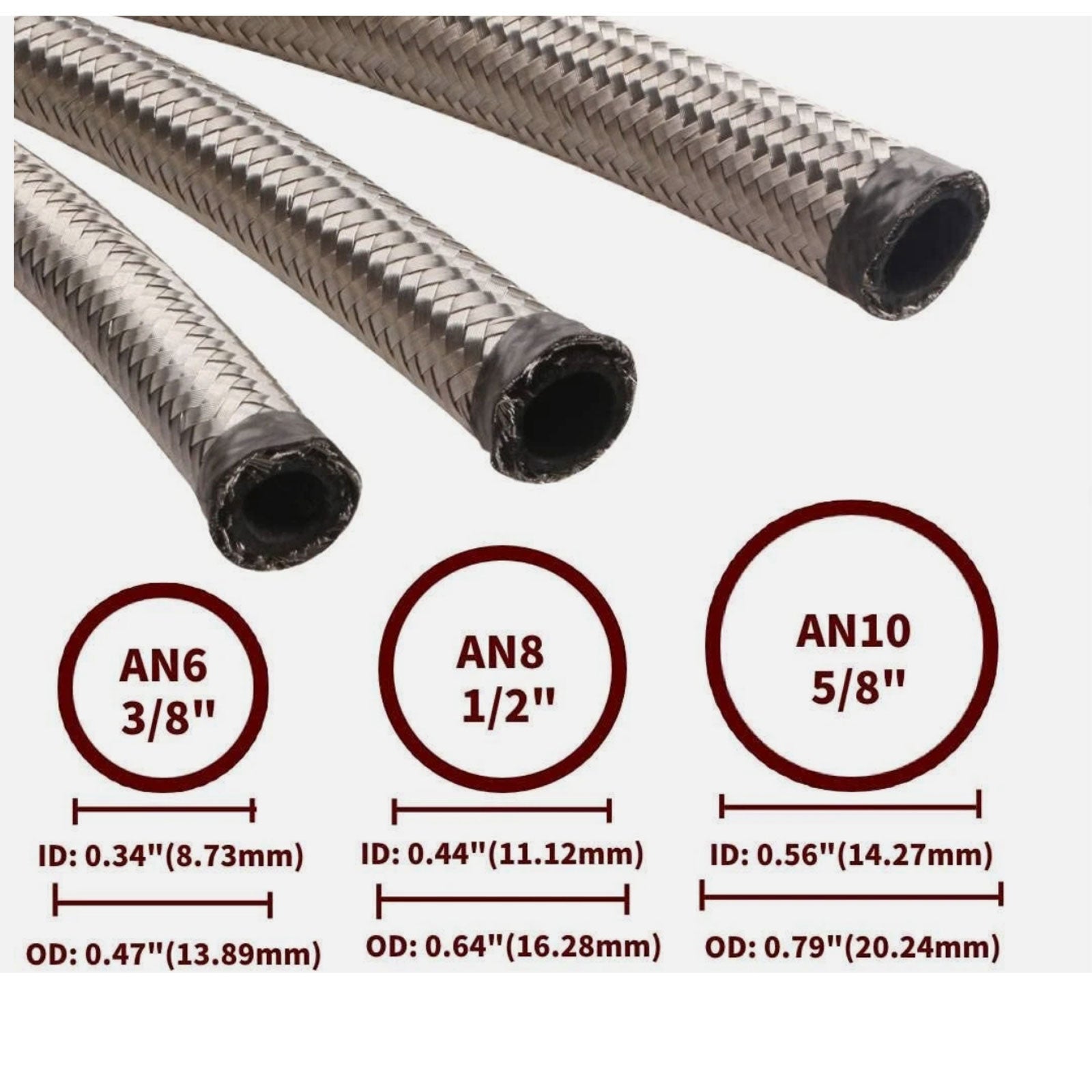

• 4AN/6AN/8AN/10AN CPE Fuel/Oil/Gas Hose Line Stainless Steel Braided 3//5/10/16/20FT
  👀 100% brand new Braided Stainless Steel Oil /Gas/ Fuel Hose with Special Hand Feel. Application for:racing fuel, pump gas, fuels with ethanol, alcohol based fuels, motor oil & coolant etc
  👀 Length:20 Ft 16FT 10FT 5FT 3FT

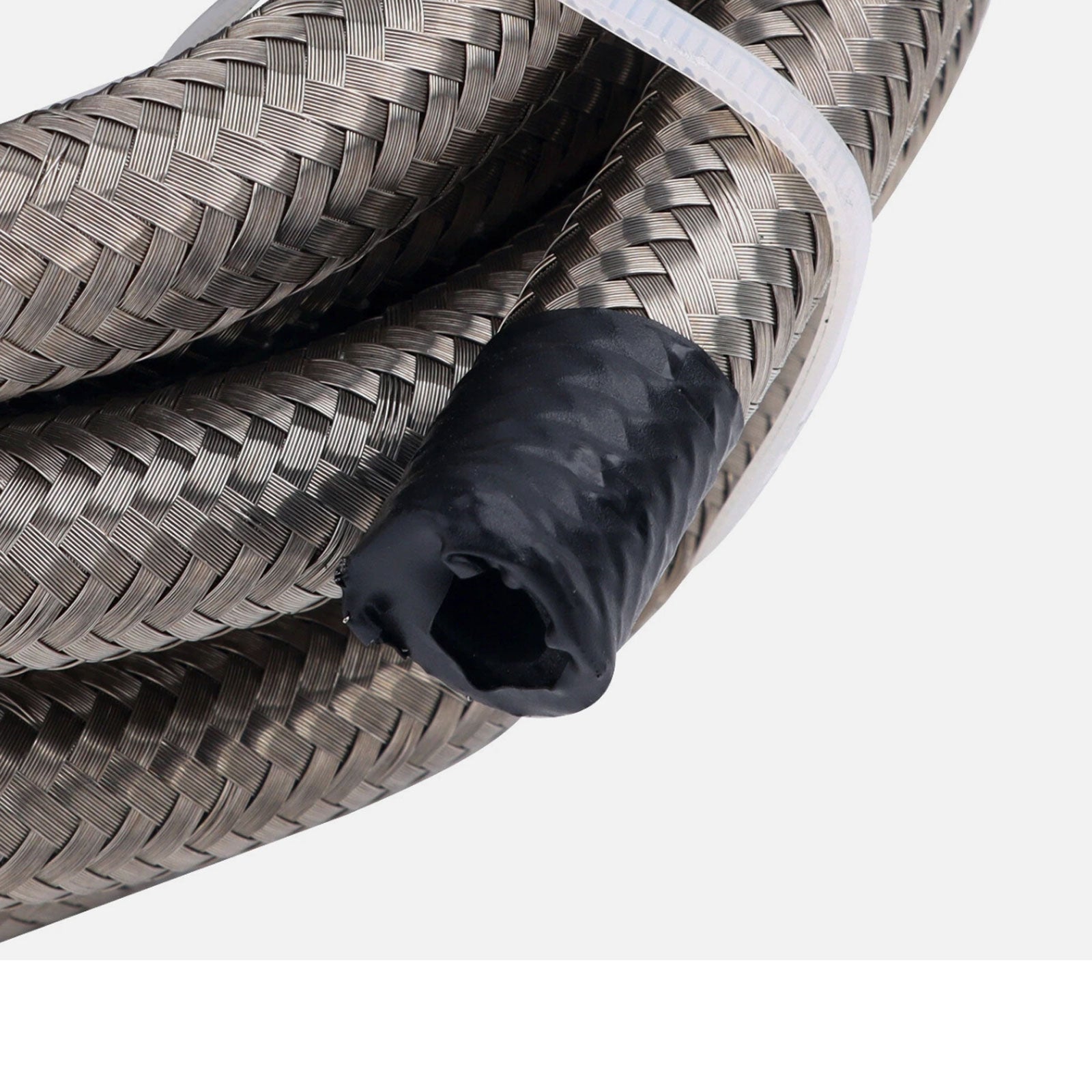

  👀 Material: innter hose: CPE synthetic rubber;The middle layer: 304 stainless steel wire mesh sleeve;The outer layer: High quality braided nylon & stainless steel
  👀 Working Temperature: -40 ℉ to +350 ℉; Working Pressure: 1000PSI;Burst Pressure: 6000 PSI

Feature

• 100% Brand New
• Outside Hose Material: Coverd with high quality Nylon and stainless steel wires
• Inner Hose Material: CPE Synthetic material hose
• Custom Length Available

Installation Instruction

• Wrap masking tape over the area to cut to ensure a nice clean cut and prevent the braid from unravelling.
• Clean cut the hose and clean away debris.
• Clamp the fitting socket into the vise and insert hose into socket
• Apply lube to nipple
• Start hand threading the socket down onto the fitting. Be careful not to strip the threads when starting. Tighten the initial threads by hand being careful not to strip the threads when starting.
• Once the hose goes over nipple tighten using adjustable wrench.
