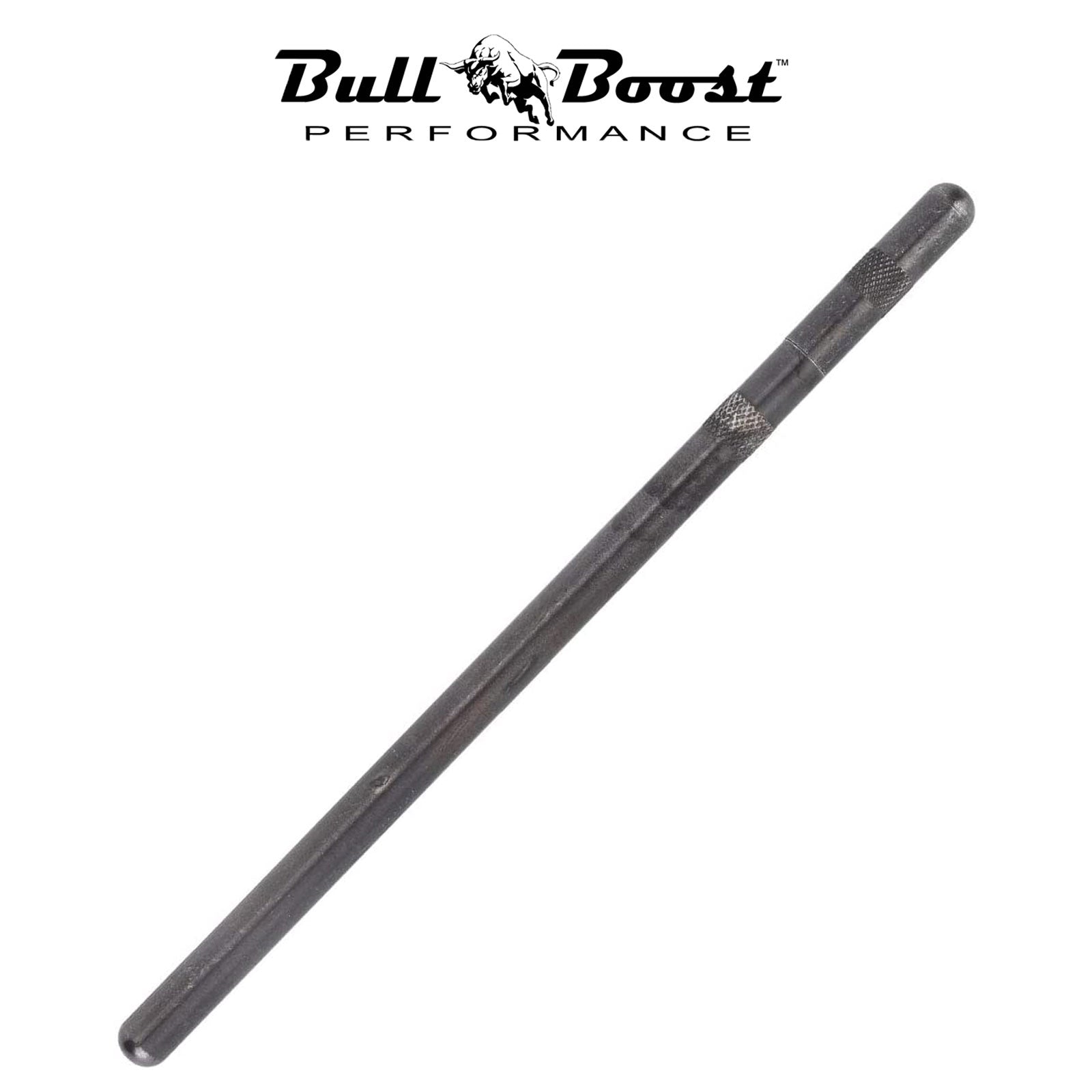

Pushrod Length Checker 6.80" to 7.80" Push Rod 7702-1 Fit for LS1 LS2 LS6 LSX

Description
Save yourself a lot of guess work to properly figure out what pushrod size you need for your engine build.

Comparable to Comp Cams Part #7702-1

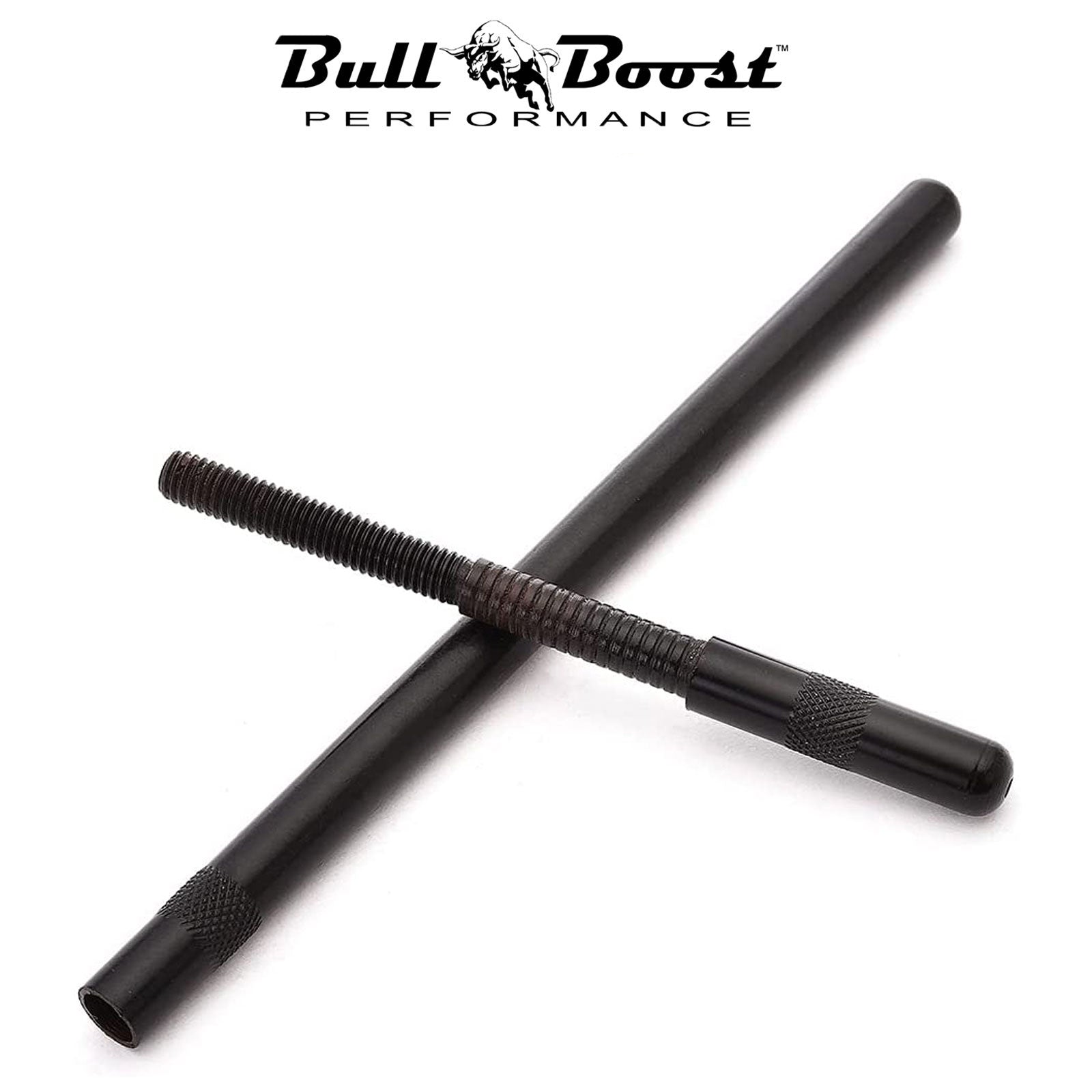

Pushrod Length Checkers are crafted from a steel alloy with black oxide coating for years of accurate measurements.

Specification

Having the correct pushrods in your engine is a critical factor in proper rocker arm geometry, and this is the best tool to measure pushrod length (it reads like a micrometer).

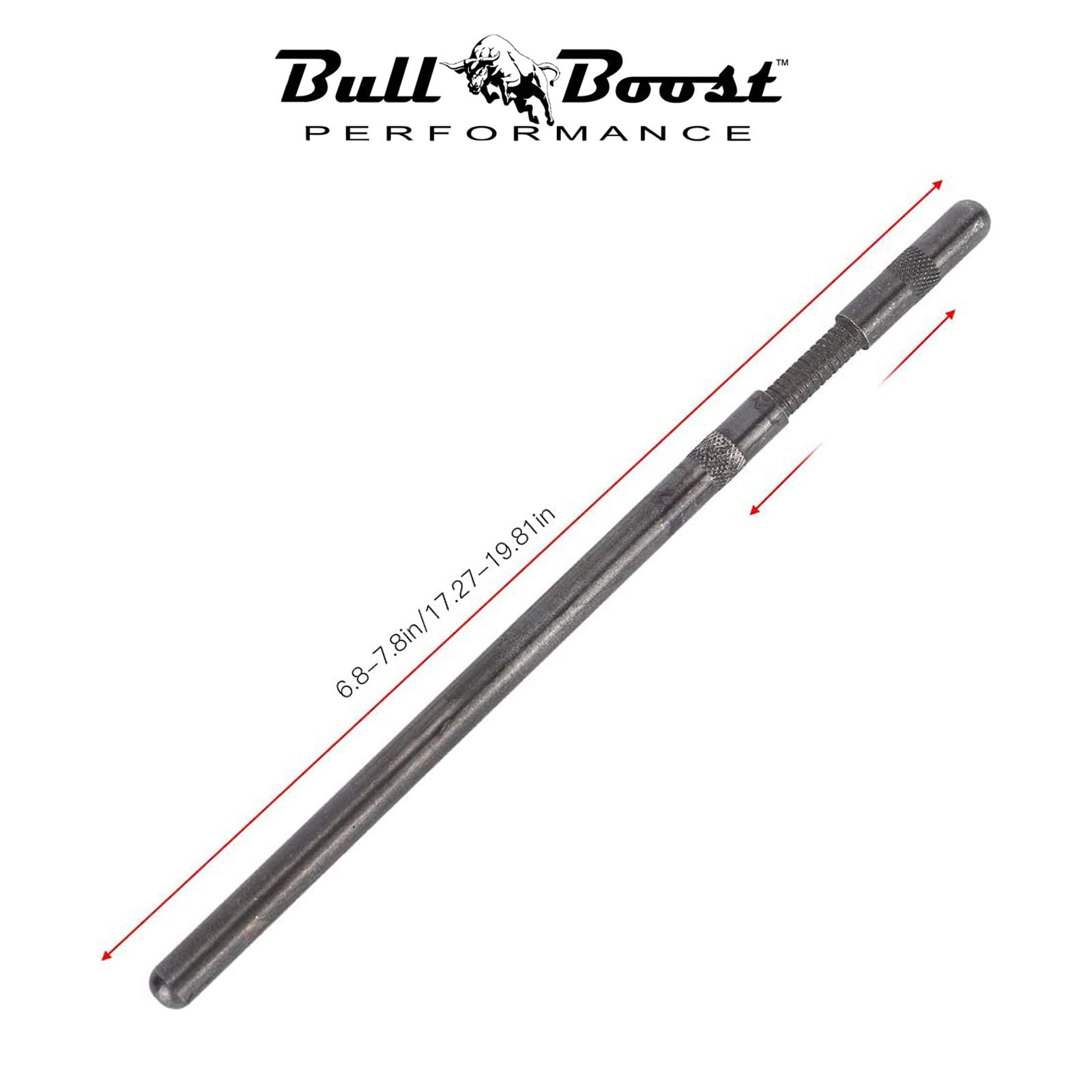

Individual Length Checker Adjustable Range: 6.800" to 7.800"

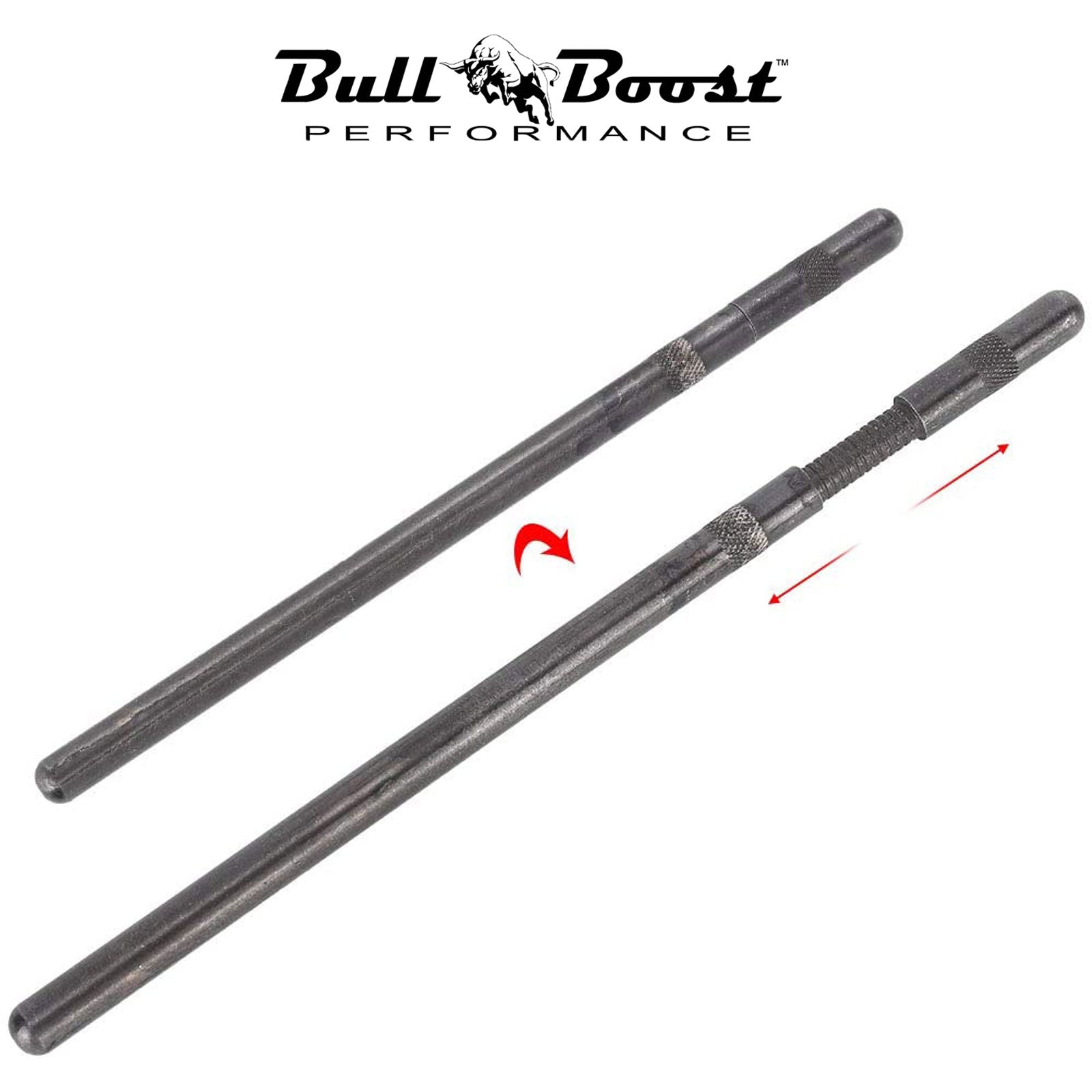

Simply screws and unscrews by hand using the lines as pictured for measurement. Each full turn is .050"

This .050" full turn design is as of 3/1/18.  Our previous version was .035" per turn.  So if you purchased one previous to that date it is .035" per turn.
