TR Billet Wheel TD06-20G Turbocharger for Nissan SR20DET S13/S14/S15
TR Billet Wheel TD06-20G Turbocharger for Nissan SR20DET S13/S14/S15
Couldn't load pickup availability
Nissan SR20 turbocharger now comes with billet compressor wheel to improve performance. Styled in TD06-20G size, the billet compressor wheel improves air flow by at least 10% from standard TD06-20G. TR SR20 turbocharger is perfect for drivers looking for low to mid-range power and torque response. This turbo is 100% bolt-on and designed for street and weekend track use. The turbocharger includes billet wastegate actuator for boost stability plus all the hardware needed for installation.
Turbo Characteristics
| Model | TD06-20G | |
| Part Number | TR-TN1000 | |
| Bearing | Journal | |
| Flange | T25 | |
| Actuator | 1.1 BAR / 16 PSI | |
| Compressor Diameter | In: | 52.5 mm |
| Ex: | 68 mm | |
|
Turbine Diameter |
In: | 61 mm |
| Ex: | 54 mm | |
| Maximum Power | 520 HP | |
Characteristics:
•10% More Air Flow
•Billet Compressor Wheel
•Billet Wastegate Actuator
•100% Bolt-On

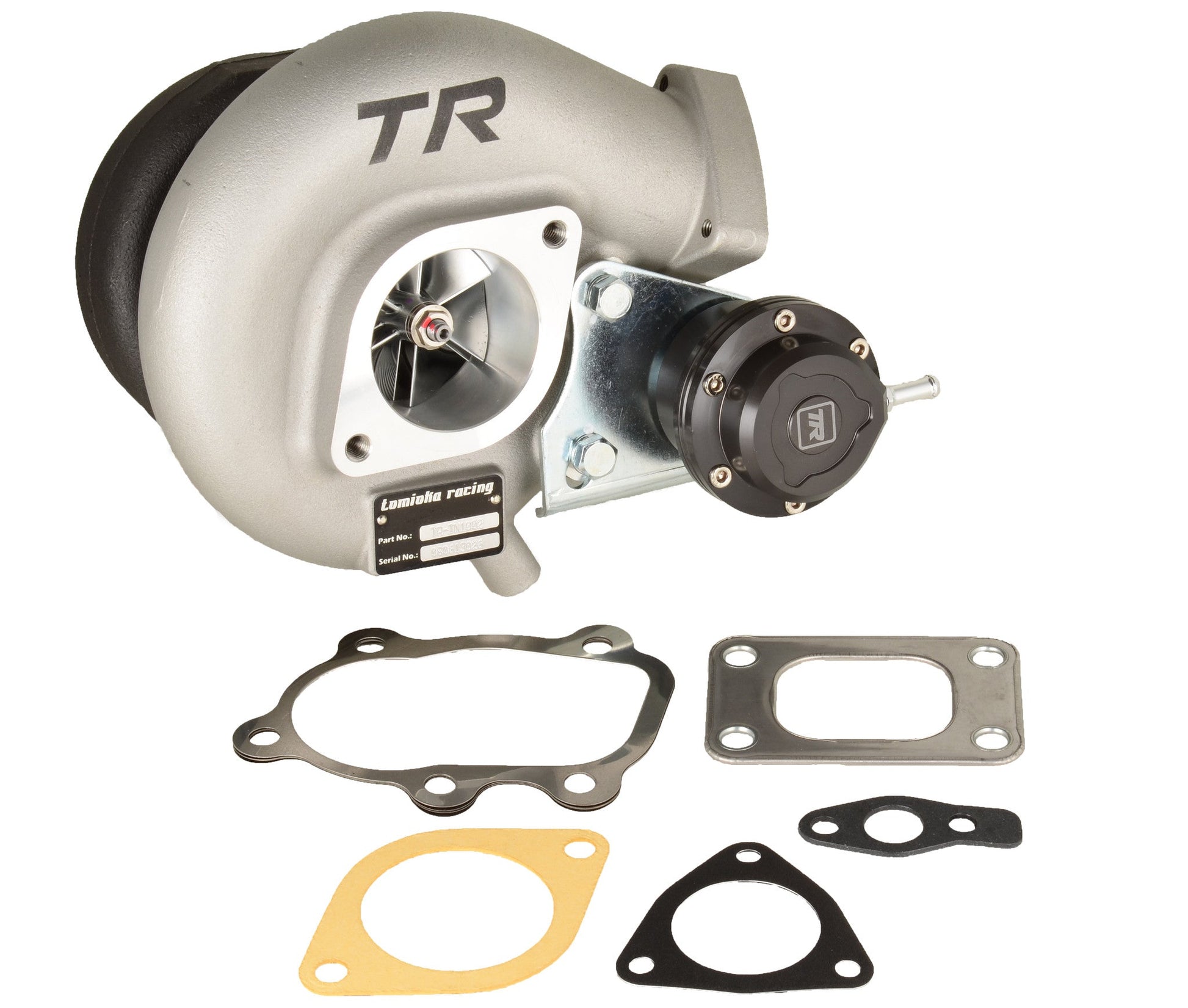

Kit Contents:
• Turbocharger
• Actuator
• Oil & Water Pipe
• Gaskets
