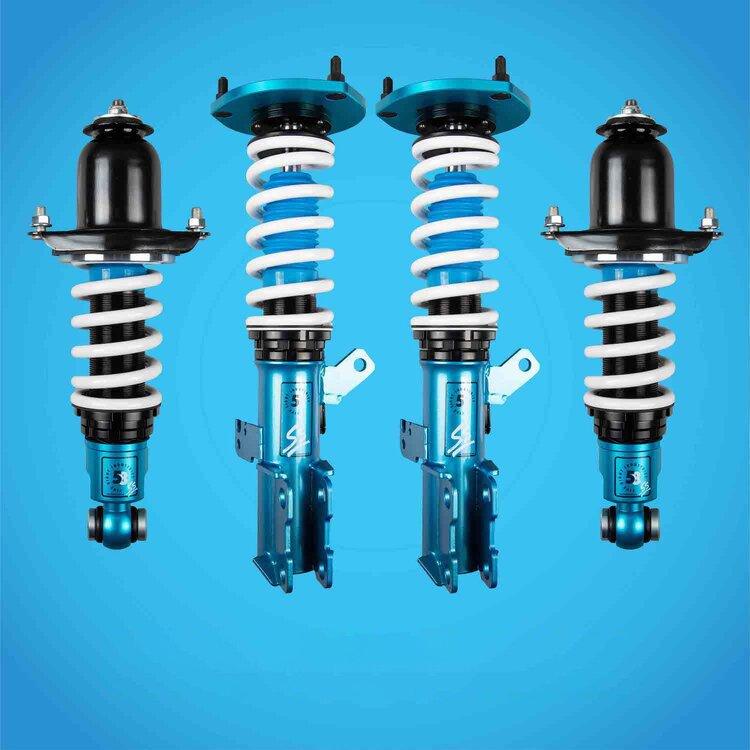

Toyota Matrix Coilovers 2003-2008

The 2003–2008 Toyota Matrix is practical by design, but the factory suspension tends to feel soft and a bit disconnected when you start pushing it. The FIVE8 SS coilover system changes that, giving the car a lower stance and a more controlled, confident feel without making it harsh to live with.

With this setup, the Matrix feels more stable through corners and less floaty over uneven roads. It holds its line better, settles quicker after bumps, and responds more directly to steering input. The difference isn’t just in how it looks, it’s in how the car behaves once you start driving it. Ride height is fully adjustable, so you can bring it down to the stance you want while keeping the suspension working properly.

Everything is kept straightforward. Fixed damping means you don’t have to constantly tweak settings, and the mono-tube design helps keep performance consistent over time. Internally, the components are matched to give a balanced, predictable feel without going overly stiff or uncomfortable.

If you’re looking for Toyota Matrix coilovers that tighten up the driving feel and clean up the stance at the same time, this setup keeps it simple and effective.

🔧 Coilover Kit Features

• Full Length Ride Height Adjustment
• Mono-Tube Damper Design
• Seamless 52mm Electroplated Carbon Steel Shock Body
• 20mm Piston Rod for MacPherson Suspension
• 14mm Piston Rod for Non-MacPherson Suspension
• 44mm High-Flow CNC 6061 Aluminum Piston
• CNC 6061 Aluminum Floating Piston
• Polyurethane Oil Seal
• SAE9254 Cold-Wound Spring
• Multi-Thickness Valving Shims
• Low-Gas Pressure Design
• 7.5w Compounded Suspension Fluid

⚙️ Spring Rates

Front: 8K
Rear: 5K

🚗 Fitment

2003 Toyota Matrix
2004 Toyota Matrix
2005 Toyota Matrix
2006 Toyota Matrix
2007 Toyota Matrix
2008 Toyota Matrix
