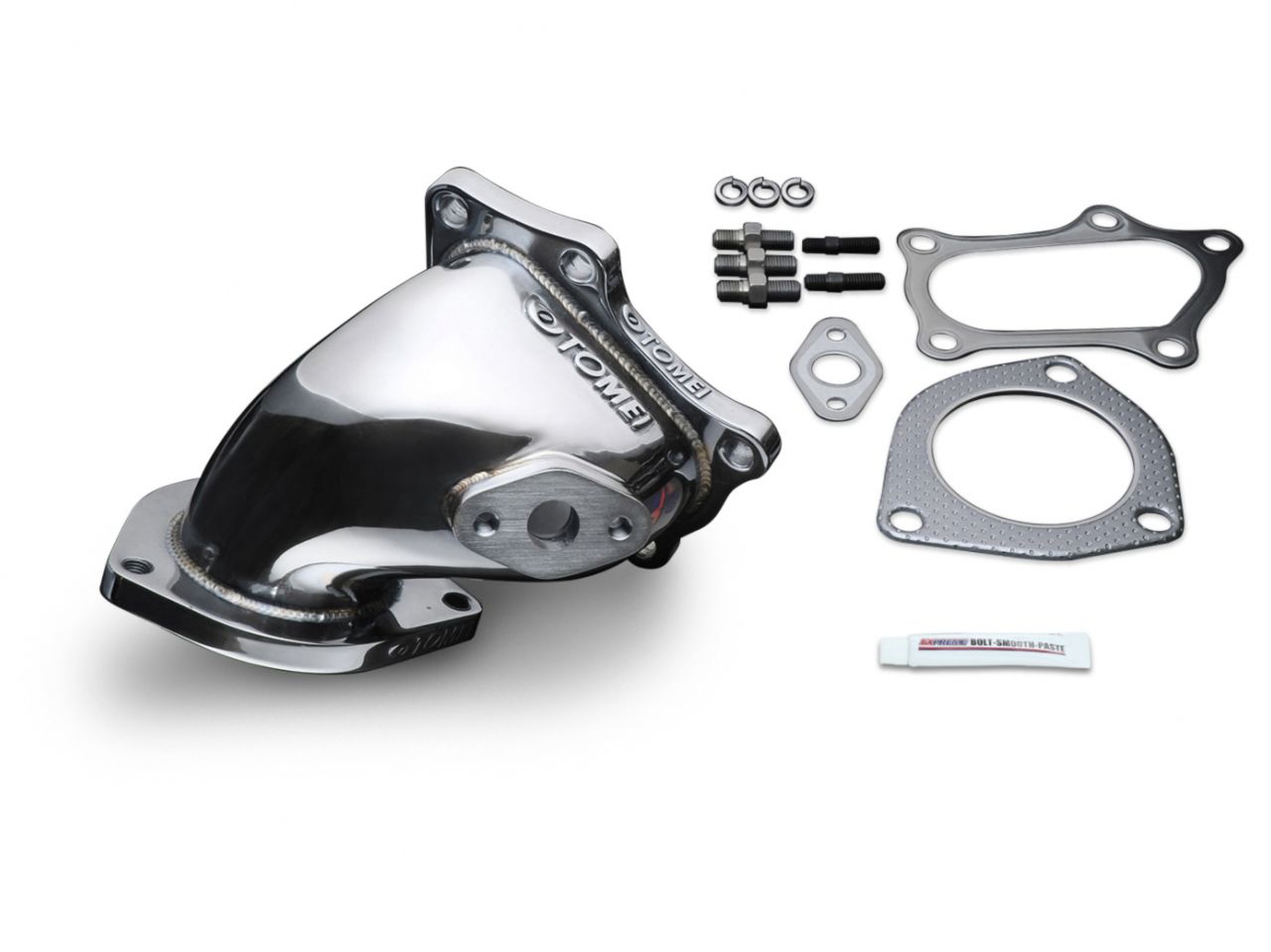

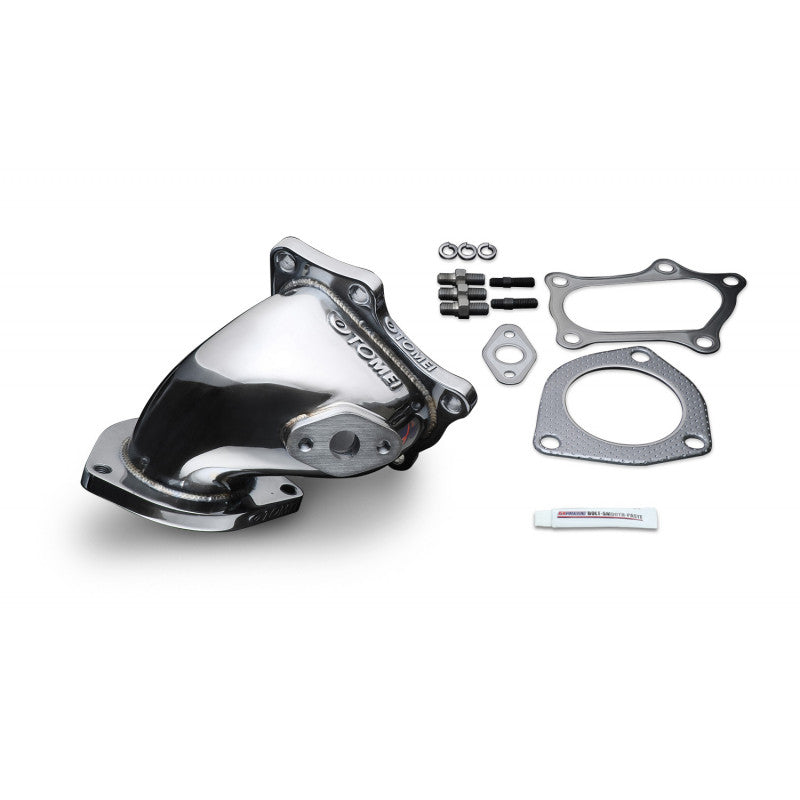

TURBINE OUTLET PIPE KIT EXPREME 1JZ-GTE (Previous Part Number 424001)
Large Capacity For High Flow, Maximise Your 1JZ Potential!
The internal shape is made smooth to optimize the large volumetric gas flow. With a well designed flange for ease of installation. This products design will maximize the Tomei ARMS Turbos performance potential. It was designed with the exit diameter of ?76.3mm, yet with the same flange bolt pattern of the stock front pipe.
WIDE MOUTH - Allows the exhaust gases to smoothly exit from the turbo without interference. The Lost Wax method was used for optimum strength and enhanced looks.
３ INCH (φ76.3mm) COMPATIBLE
120% increase over stock.
Greatly reduces the secondary exhaust gas pressure.
| MATERIAL | EXIT DIA.(Φ) | VOLUME (cc) | FLANGE THICKNESS (mm) | WEIGHT(kg) | |
| TOMEI | SUS304 | 76.3 | 810 | 12 | 1.8 |
| STD | STEEL | 60 | 620 | 13.8 | 2.5 |
- Category: Exhaust Turbine Outlet Pipe
- Engine: 1JZ
- Weight (lb): 6
- Dimension (inch): 13x7x7
