Tomei Forged H-Beam Connecting Rod Set
Tomei Forged H-Beam Connecting Rod Set
Regular price
$648.00 USD
Regular price
$720.00 USD
Sale price
$648.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

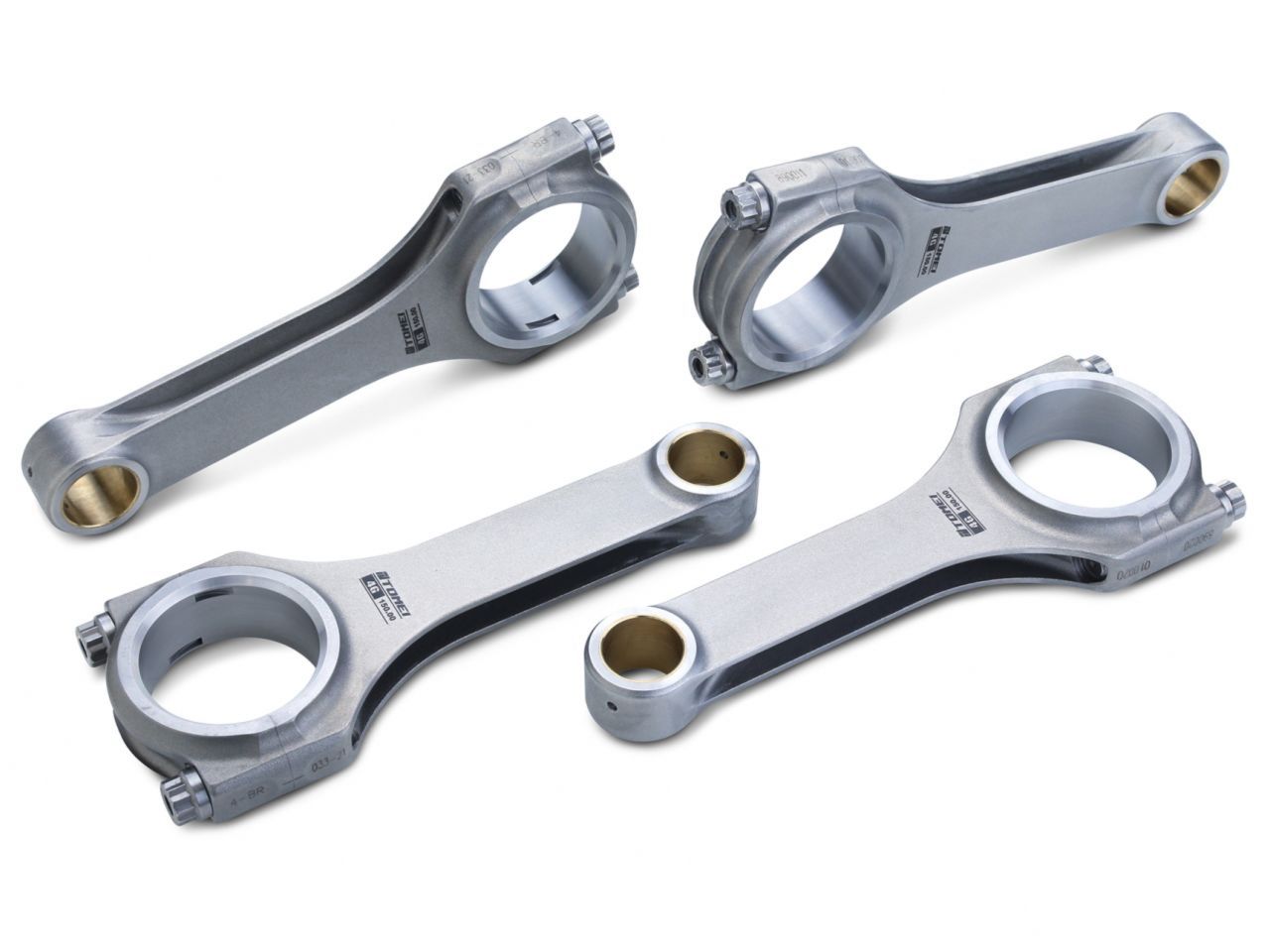

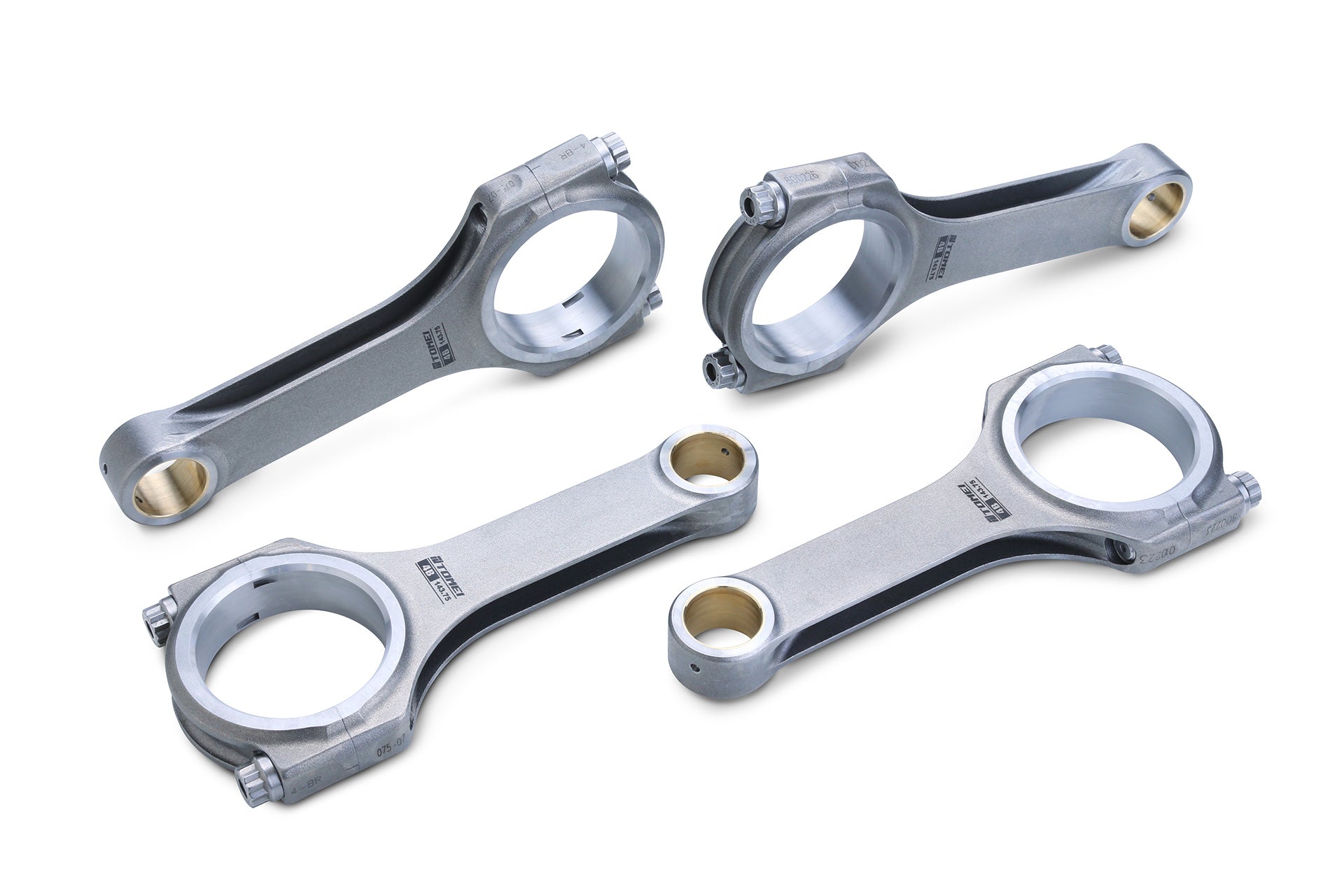

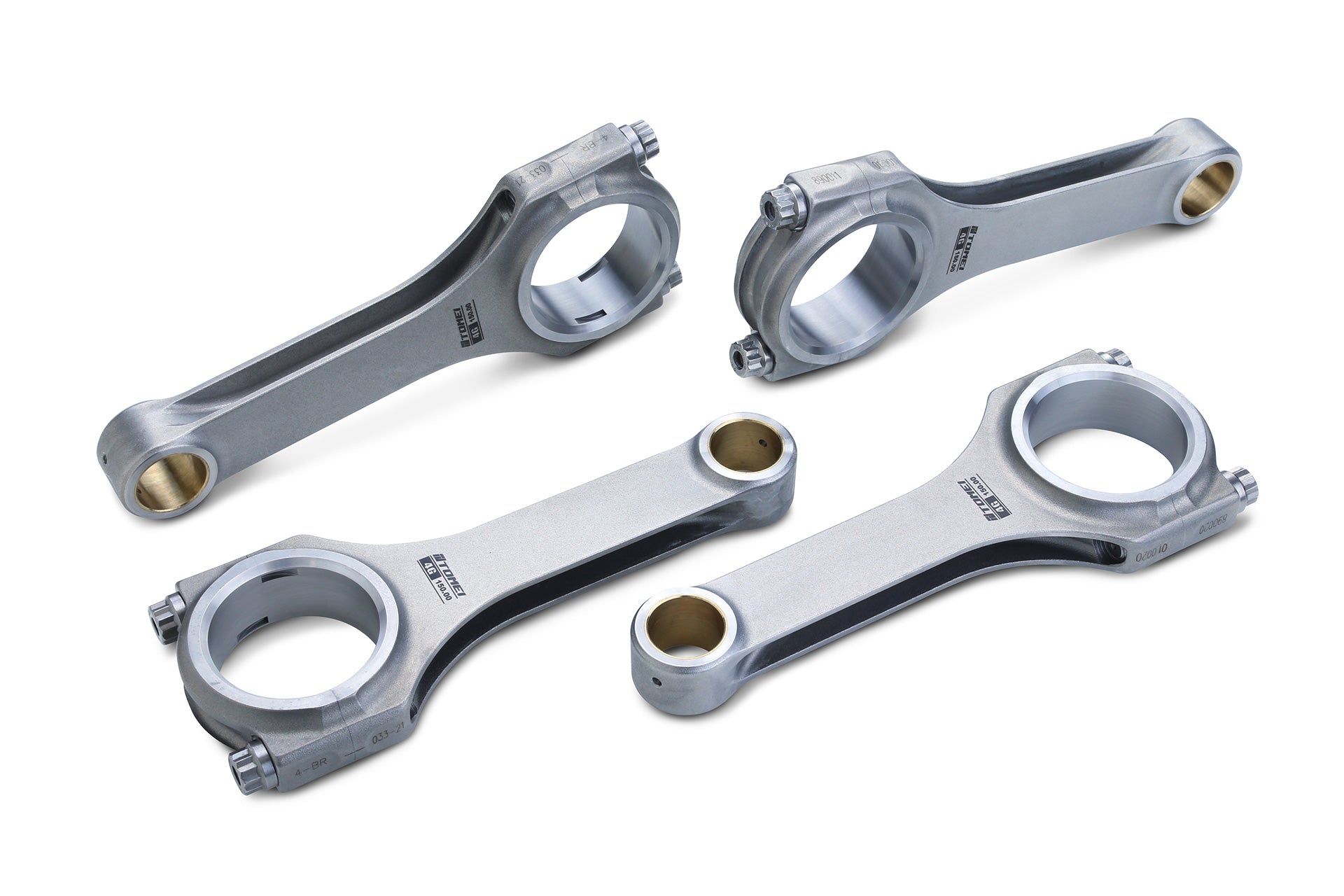

Forged H-Beam Connecting Rod Set
Category: Cylinder Block Connecting Rod
| Category | Engine | Parts Number |
| FORGED H-BEAM CONNECTING ROD SET 4G63 150.00mm (STD/2.2) | 4G63 | TA203A-MT01A |
| FORGED H-BEAM CONNECTING ROD SET 4B11 EVO10 143.75mm (STD/2.3) | 4B11 | TA203A-MT02A |
| Part Number | TA203A-MT01A | TA203A-MT02A |
| C-to-C (mm) | 150.00 (OEM ±0.0) |
143.75 (OEM ±0.0) |
| BE.BORE×WIDTH (mm) |
48.0×26.4 |
55.0×21.9 |
| PE.BORE×WIDTH (mm) (Bush inner cir) |
22.0×23.0 |
23.0×20.0 |
| MATERIAL | SNCM439 | SNCM439 |
| BOLT | ARP L19 3/8-24 40.0mm |
ARP L19 3/8-24 40.0mm |
| BEARING SIZE | INNER DIA. 45.0mm WIDTH 21.0mm |
INNER DIA. 52.0mm WIDTH 17.0mm |
| WEIGHT (g) | 591.0 |
588.0 |
