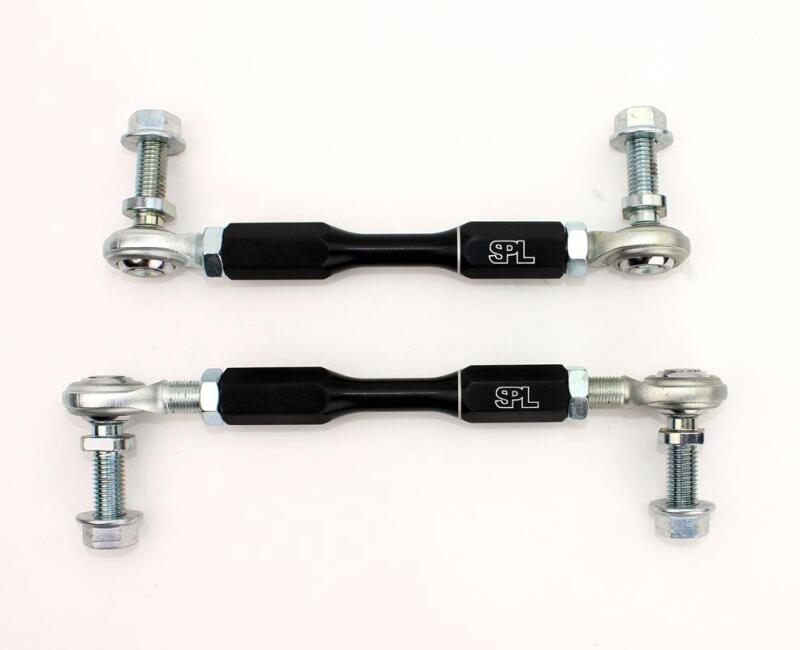

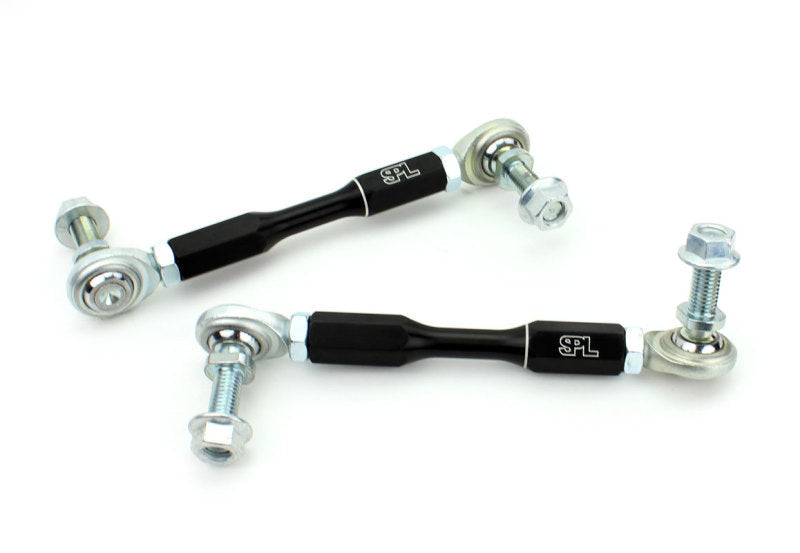

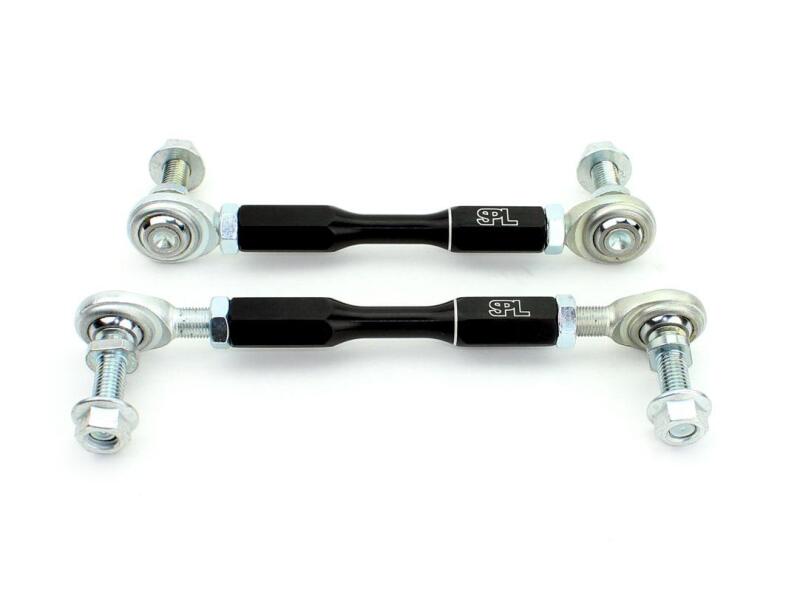

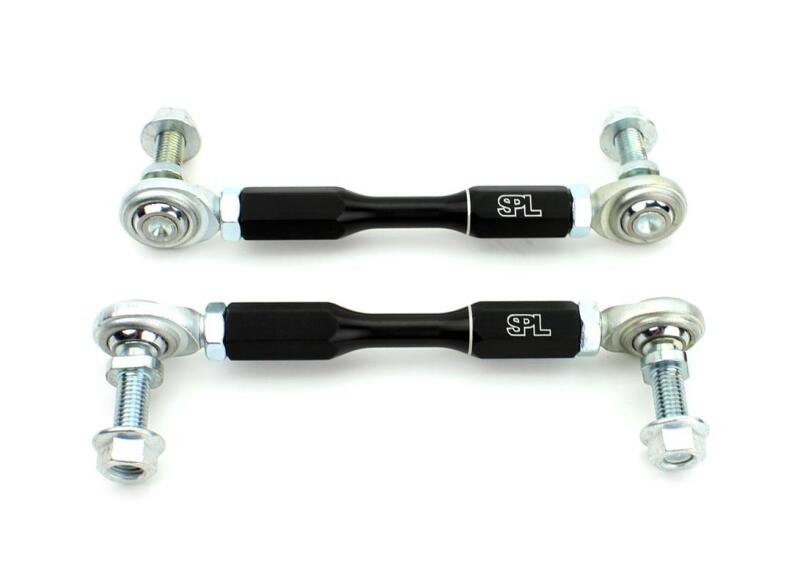

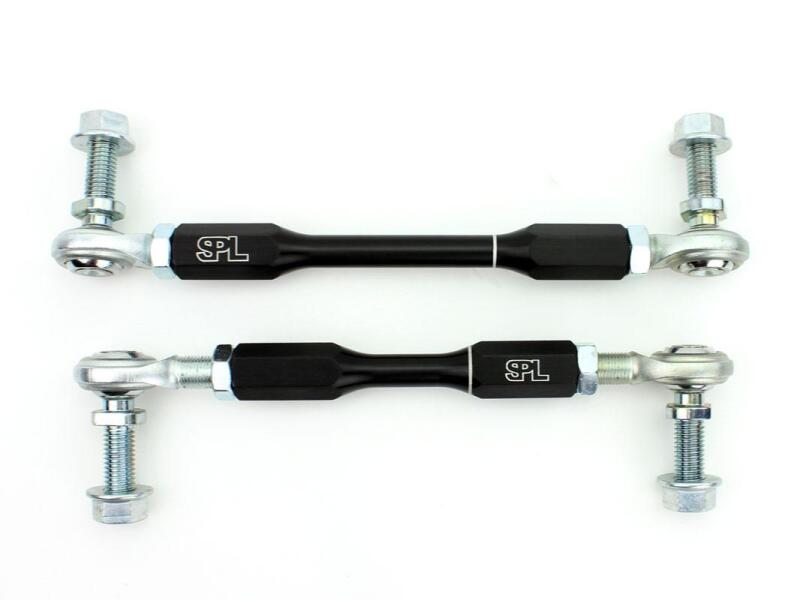

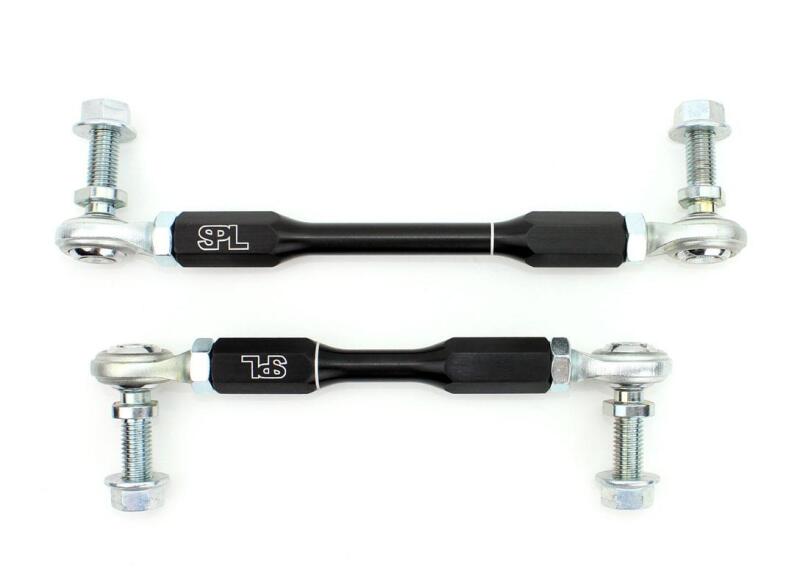

SPL Part Front Endlinks GR86/BRZ/GT86/FR-S - Short Version

SPL Parts PRO Front Endlinks (FES) Short Version for the FRS/BRZ feature massive 2-piece Teflon lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars.  Custom heat treated Chromoly High Misalignment Studs connect to the sway bar and strut and offer extreme articulation capability (65deg) to prevent the endlink from binding when used with different adjustment holes on aftermarket sway bars.  The Short Version are recommended when using our Front Lower Control Arms and aftermarket coilovers to ensure proper clearance to the LCA.  Some aftermarket coilovers move the upper strut mount slightly and can cause interference with the sway bar endlink and the LCA.  This version moves the sway bar up high enough to ensure clearance to the Lower Control Arm

Our Endlinks are length adjustable to eliminate preload on the sway bars, which can result from uneven settling of springs or uneven suspension heights from corner weighting.  These endlinks are perfect for street or race applications.

Sold as a pair.

Made in the USA.

Application: 2013+ Scion FR-S/Subaru BRZ/Toyota GT86

Installation Instructions:

SPL Front Endlinks Short
