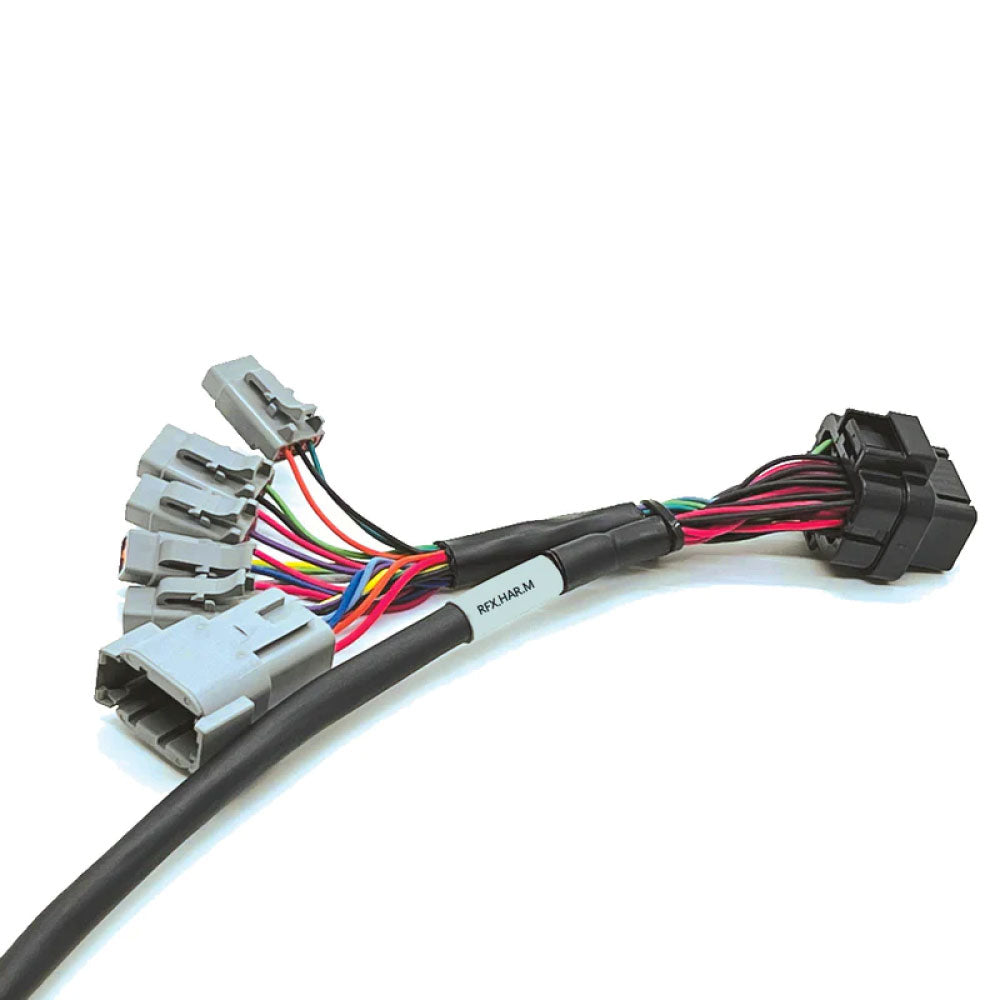

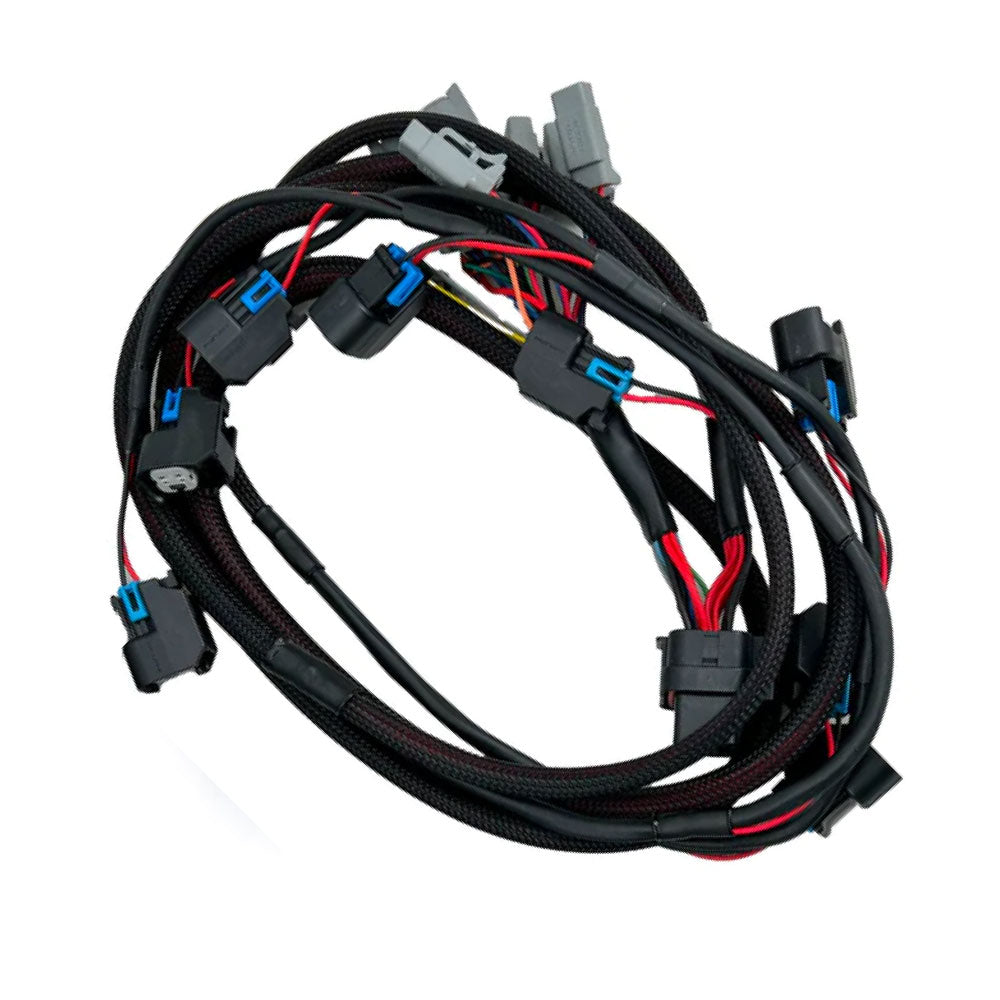

ReFlex Main Injector Harness - V8

The ReFlex+ complete harness is broken into two portions. The Main Injector Harness and the Installation Harness. The Main Injector Harness consists of the following components:

• Port injection harness for V8 engines and has EV6 / USCAR injector connectors

• DTM 3-Pin connector for an ethanol content sensor connection using the ReFlex+ Plug-n-Play Ethanol Sensor Harness
• 2x DTM 2-Pin connectors to connect to external sensors like the ReFlex+ 0-10 Bar Pressure Sensor
  • Fuel Pressure
  • Coolant Pressure
  • Exhaust Back Pressure
  • Oil Pressure
• DTM 3-Pin connector for a 0-5v sensor
• DTM 2-Pin connector for an auxiliary output to supply switched +12v and a low side trigger from the ReFlex+ Control Unit
• 3x unterminated auxiliary output wires which function as low side triggers form the ReFlex+ Control Unit
• DTM 8-Pin connector for easy connection to your choice of ReFlex+ Install Harnesses

This harness works for both the ReFlex+ and ReFlex PRO.

Compatible Car Models

• BMW M5 S63TUx (F10 / F90 / G90)
• BMW M6 S63TUx (F06 / F12 / F13)
• BMW M8 S63TUx (F91 / F92 / F93)

• BMW X5M S63TUx (F85 / F95)
• BMW X6M S63TUx (F86 / F96)
• Universal / Generic fit for all V8 Engines
