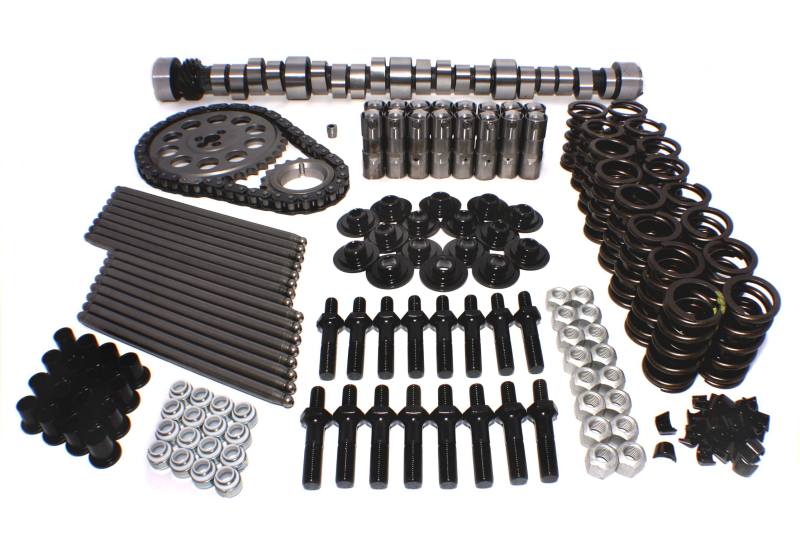

Comp Cams Chevy Gen VI 454 Xtreme Marine XM270HR Cam & Kit

Chevy Gen VI 454 Xtreme Marine XM270HR Cam & Kit

Hydraulic Roller-Good for inboard/ outboard pleasure boats, has good idle.

Specifications

Lifter Type: Hydraulic Roller Lifter

Engine Family: Chevrolet Gen VI 454 C.i. 8 CYL. 1996-1999

Cam Family: Xtreme Marine" Hydraulic Roller Camshafts

RPM Range: 1600 to 5400

Valve Timing: 0.006

Lobe Separation: 112°

Intake Centerline: 110°

Valve Lash: Hyd.(Intake) / Hyd.(Exhaust)

Duration: 270(Intake)/ 276(Exhaust)

Duration @ .050" Lift: 218(Intake)/ 224(Exhaust)

Valve Lift: 0.51(Intake)/ 0.51(Exhaust)

Lobe Lift: 0.301(Intake)/ 0.301(Exhaust)

Vehicle Fitments:
