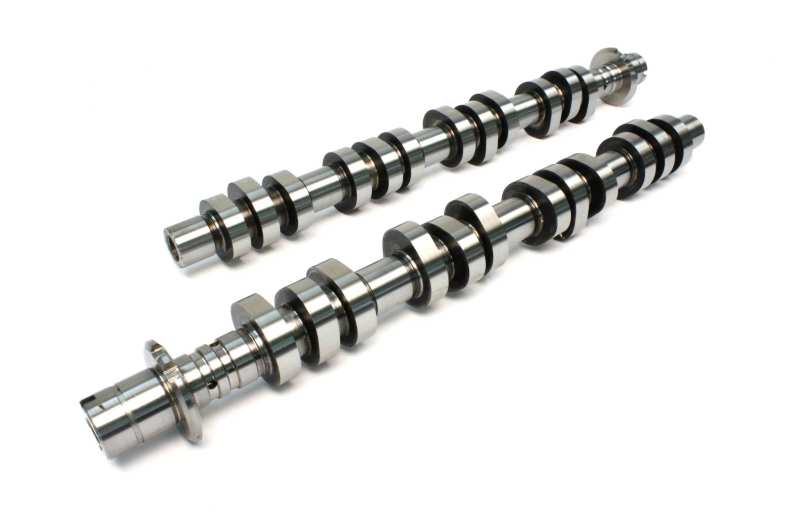

Comp Cams Cam Set,F4.6 3V Modular XE264PH-12

(Stage 2) XFI" SPR, XE264PH-12;Powerful w/ Very Rough Idle, Good Mid-Range Torque

SOHC-(Stage 2) Powerful cam with very rough idle, biggest cam to use with stock heads. Good mid-range torque with incredible top end hp gains. Solid power above 4700 rpm, spring & phaser upgrade required. 3.90+ gears and 3000+ stall.

Specifications

Lifter Type: None (Overhead Cam)

Engine Family: Ford 4.6L & 5.4L SOHC Modular 3-Valve (2004-Present)

Cam Family: XFI" SPR Ford 4.6L/5.4L Modular 3V Cams (Springs & Phaser Mods Required)

RPM Range: 950 to 6900

Valve Timing: 0

Lobe Separation: 112°

Intake Centerline: 102°

Valve Lash: Hyd.(Intake)/ Hyd.(Exhaust)

Duration: 264(Intake)/ 275(Exhaust)

Duration @ .050" Lift: 229(Intake)/ 236(Exhaust)

Valve Lift: 0.535(Intake)/ 0.55(Exhaust)

Lobe Lift: 0(Intake)/ 0(Exhaust)
