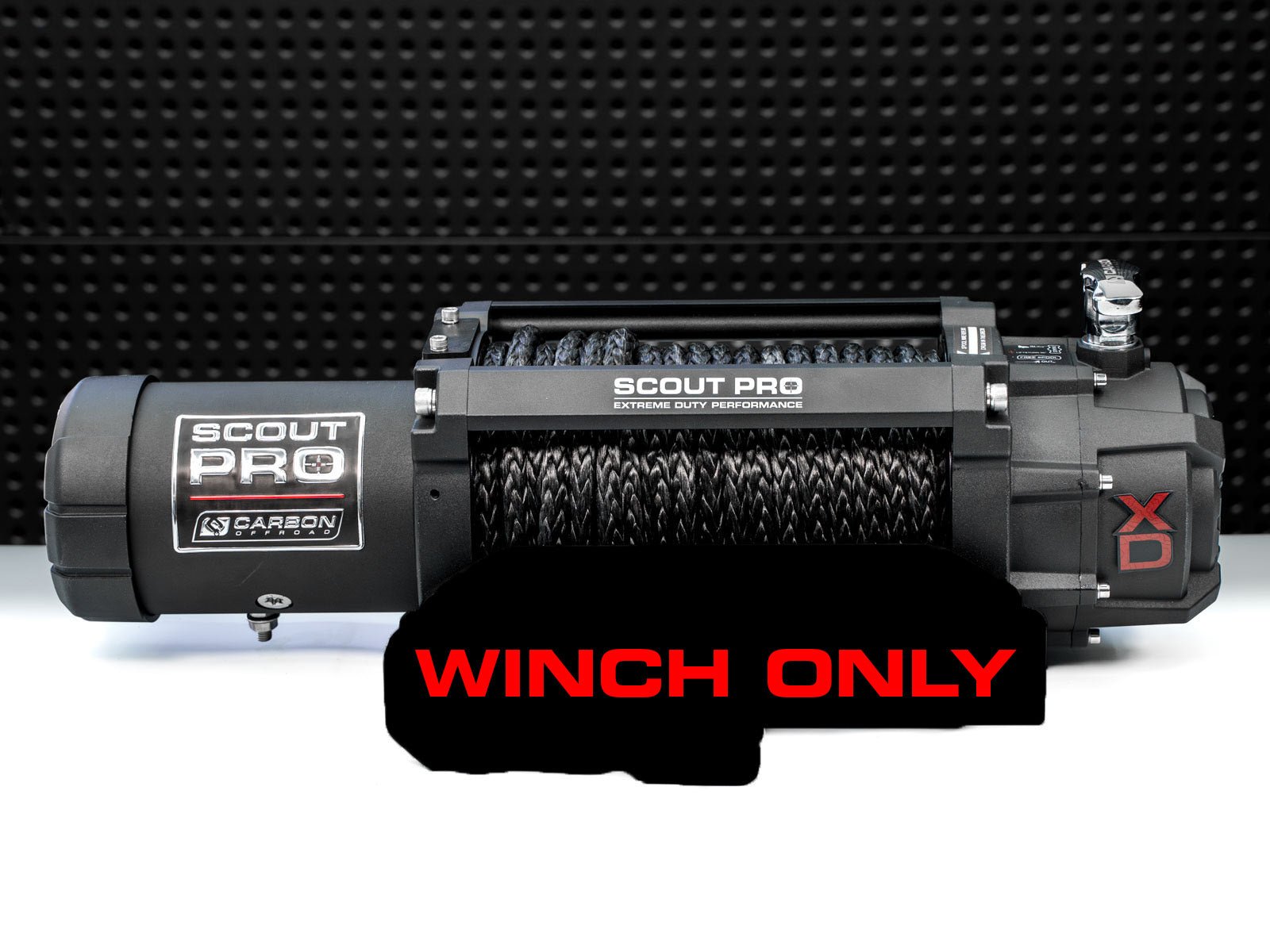

Carbon Scout Pro - 15000lb Winch V3 - WINCH ONLY
Carbon Scout Pro - 15000lb Winch V3 - WINCH ONLY
Couldn't load pickup availability
Heavy-Duty Recovery Power
The Carbon Scout Pro 15K bridges the gap between standard 12K winches and truck-grade brutes. With 6804kg (15000lbs) pulling capacity, a 7HP motor, and oversized gearsets, it is built for heavily loaded overland rigs, RAM 1500s, 79 Series Land Cruisers, and slide-on camper haulers that push beyond a 12K's comfort zone.
You can upgrade this winch with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.
Features
- Rated Pull: 6804kg (15000lbs) single-line, ideal for RAM 1500, 79 Series, Land Cruiser wagons, and heavy overland rigs.
- Motor: 12V DC 7HP series-wound motor (24V option available) provides dependable torque for heavy pulls.
- Gear Train: 3-stage planetary with a 218:1 gear ratio, balanced for strength and line speed.
- Clutch: Rotating ring gear clutch.
- Brake: Automatic brake integrated in motor bracket.
- Synthetic Rope: 24m (78.7ft) of 11mm (0.4") high-strength, lightweight UHMWPE.
- Hook & Thimble: Forged Rope Thimble & MegaPro Hook available in 10 color options.
- Fairlead: Carbon Offroad MEGAPRO CNC billet, hard-anodized, multi-position precision alloy fairlead.
- Remotes: Wired remote with 3.6m (11.8ft) lead and wireless remote included, operate from the cab or at the winch.
- IP Rating: IP68 Rated for dustproof and waterproof protection in harsh conditions.
- Warranty: Lifetime mechanical warranty, 5-year electrical warranty, and 5-year water ingress protection warranty.
Contents
1 x Carbon Offroad Scout Pro 15000lb Winch V3 (WINCH ONLY)
1 x 11mm (0.4") UHMWPE Synthetic Winch Rope
| Feature | Specification Metric (Imperial) |
|---|---|
| Part Number | CW-XD15-V3WO |
| Rated Line Pull | 6804kg (15000lbs) |
| Motor | 12V DC 7HP Series-Wound |
| Gear Ratio | 218:1 |
| Recommended Battery | Minimum 650 CCA |
| Mounting Bolt Pattern | 254mm x 114.3mm (10.0" x 4.5") |
| Drum Dimensions (Diameter x Length) | 63.5mm x 224mm (2.5" x 8.8") |
| Winch Dimensions (L x W x H) | 556.5mm x 158mm x 187mm (21.9" x 6.2" x 7.4") |
| Packing Dimensions (L x W x H) | 580mm x 200mm x 220mm (22.8" x 7.9" x 8.7") |
| Installed Weight | 26.7kg (58.9lbs) |
| IP Rating | IP68 |
12V DC Performance Specifications (First Layer of Drum)
| Line Pull Metric (Imperial) | Line Speed Metric (Imperial) | Motor Current |
|---|---|---|
| 0kg (0lbs) | 8.5m/min (27.9fpm) | 65 amps |
| 910kg (2000lbs) | 3.6m/min (11.8fpm) | 120 amps |
| 2720kg (6000lbs) | 2.9m/min (9.5fpm) | 160 amps |
| 4540kg (10000lbs) | 2.0m/min (6.6fpm) | 215 amps |
| 5900kg (13000lbs) | 1.4m/min (4.6fpm) | 265 amps |
| 6818kg (15000lbs) | 1.1m/min (3.6fpm) | 380 amps |
Pull by Layer
| Layer | Line Pull Metric (Imperial) |
|---|---|
| 1 | 6810kg (15000lbs) |
| 2 | 5765kg (12700lbs) |
| 3 | 4890kg (10770lbs) |
| 4 | 4145kg (9130lbs) |
