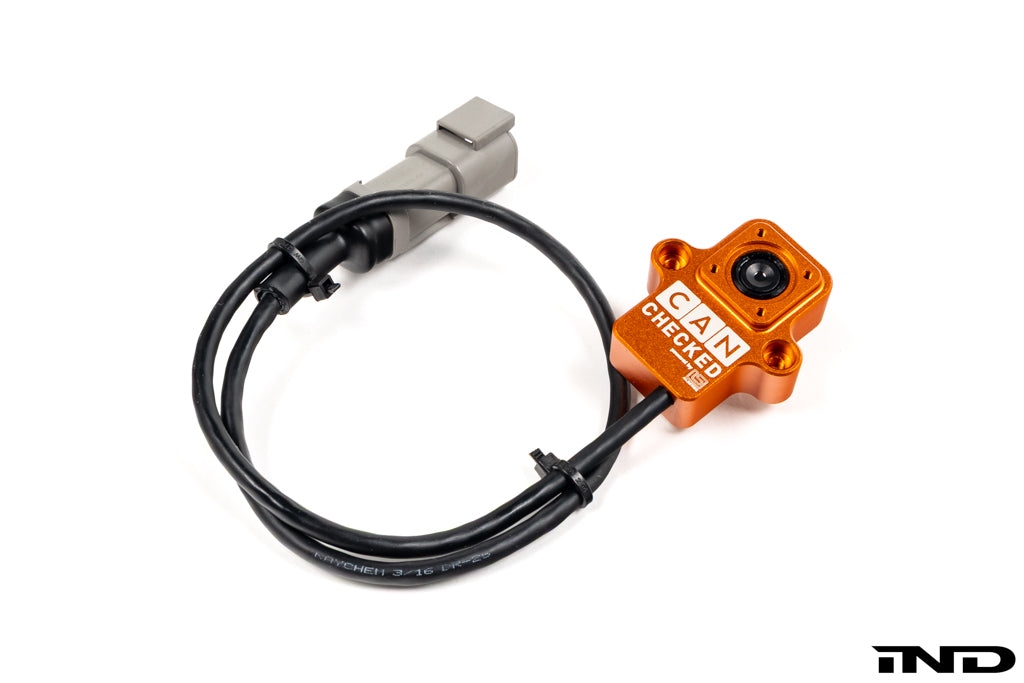

CANchecked BMC04 Brake Temperature Monitoring Set - Wired

The CANchecked BMC04 Brake Temperature Cabled Monitoring Set is a purpose-built monitoring solution designed to help drivers and builders keep a closer eye on temperature and vehicle condition data in high-performance applications while utilizing wired sensors to provide reliable power, signal, and CAN communication in demanding automotive and motorsport environments.

With a direct cable connection, it is well suited for projects that require motorsport-focused durability. Enhance your racing or high-performance setup with a comprehensive set of four accurate, real-time wired temperature monitors providing unmatched convenience and reliability, making it easier than ever to track and manage brake performance data.

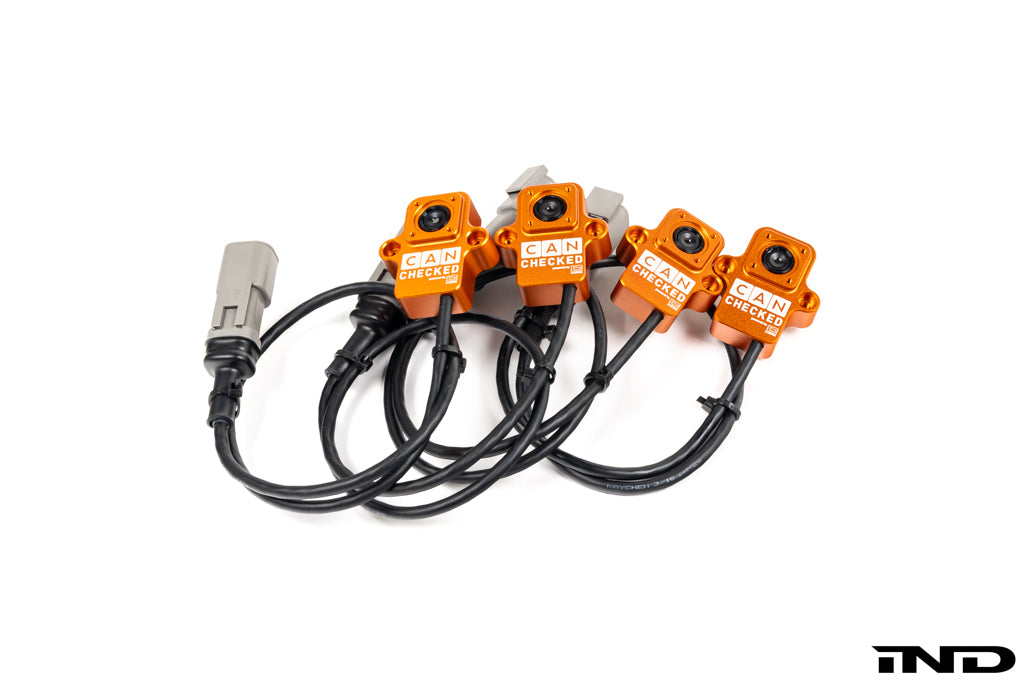

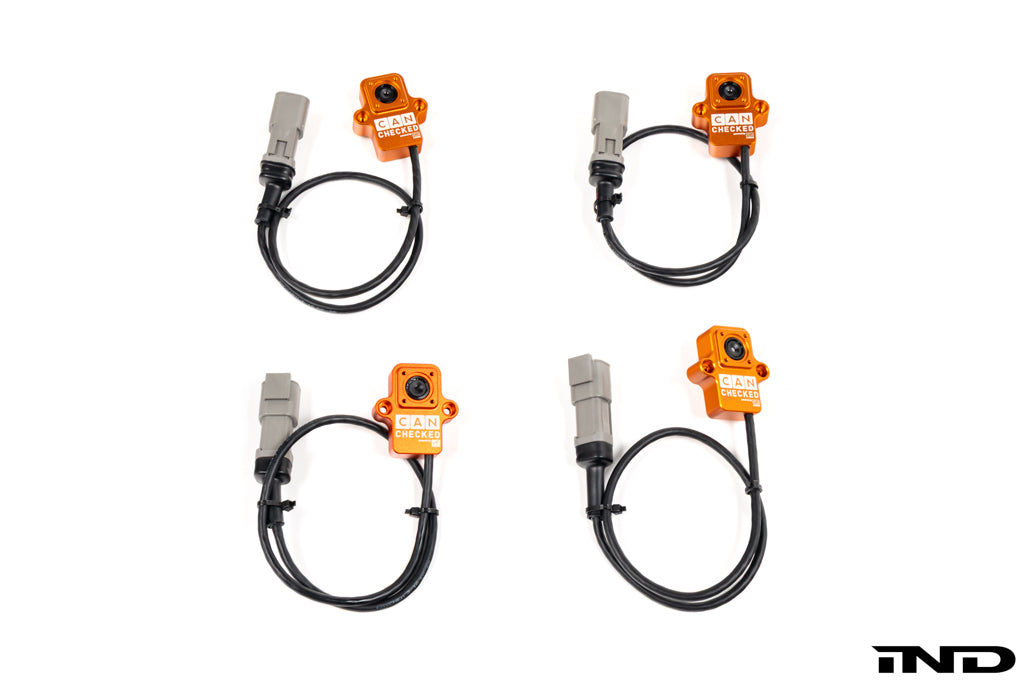

This complete set includes 4 multi-channel sensors (1 for each corner of the vehicle) and matching DTM connectors and pin kit providing real-time, high-precision data for optimized temperature management, specifically designed to meet the rigorous demands of motorsport environments.

Product Details

• Ultimate Wired Connection Reliability

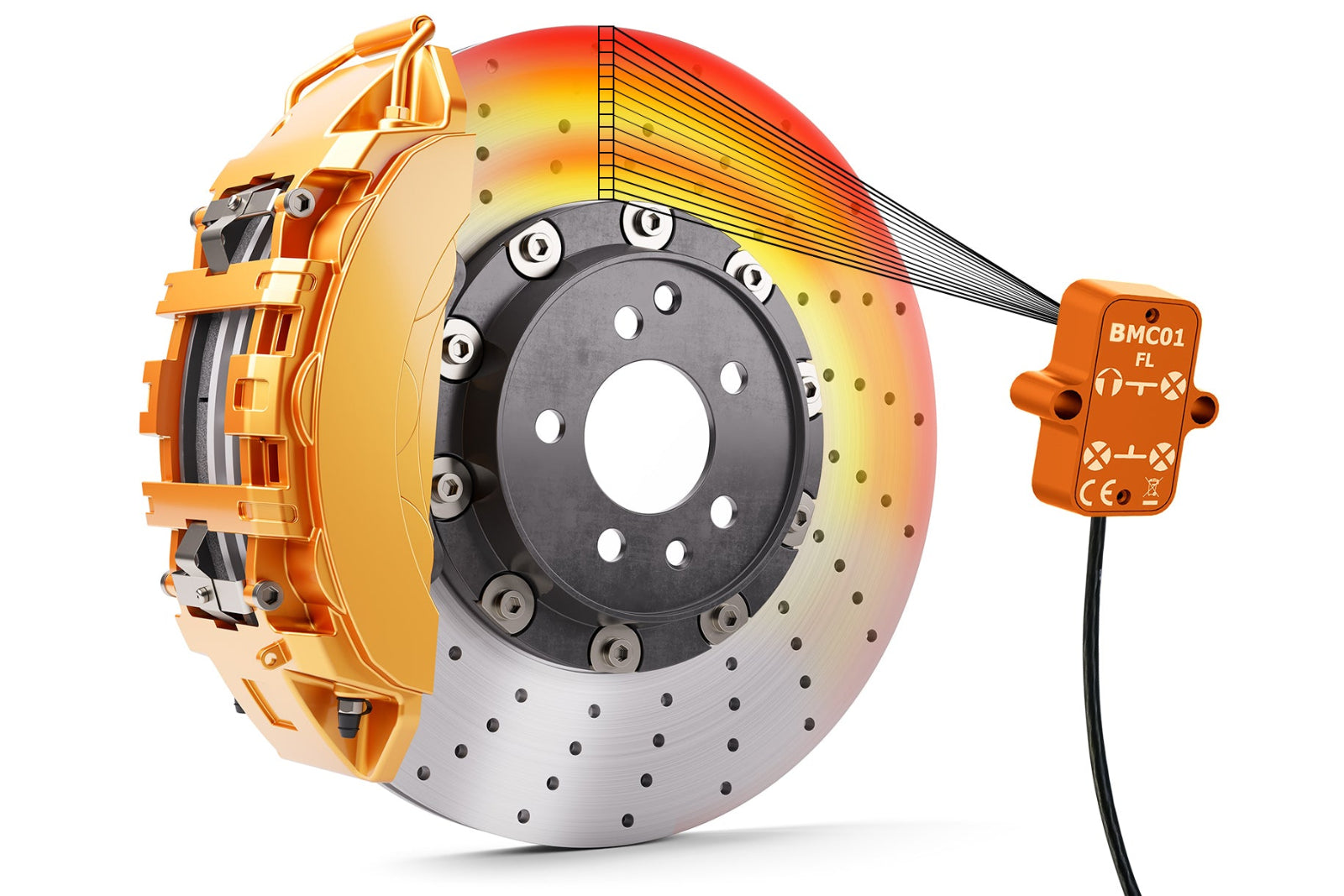

• Advanced Multi-Channel Infrared Monitoring
  • Configurable 16 temperature measurement channels per brake disc sensor
  • Adjustable refresh rate up to 64Hz for precise, real-time data insights

• High Precision Sensors with Wide Temperature Range
  • Temp range: -40° to +1200°C
  • Accuracy: +/- 1% up to 150°C and +/- 3% over 150°C
  • Field of view: 110° x 6° for full coverage, with an optional 55° for focused measurements

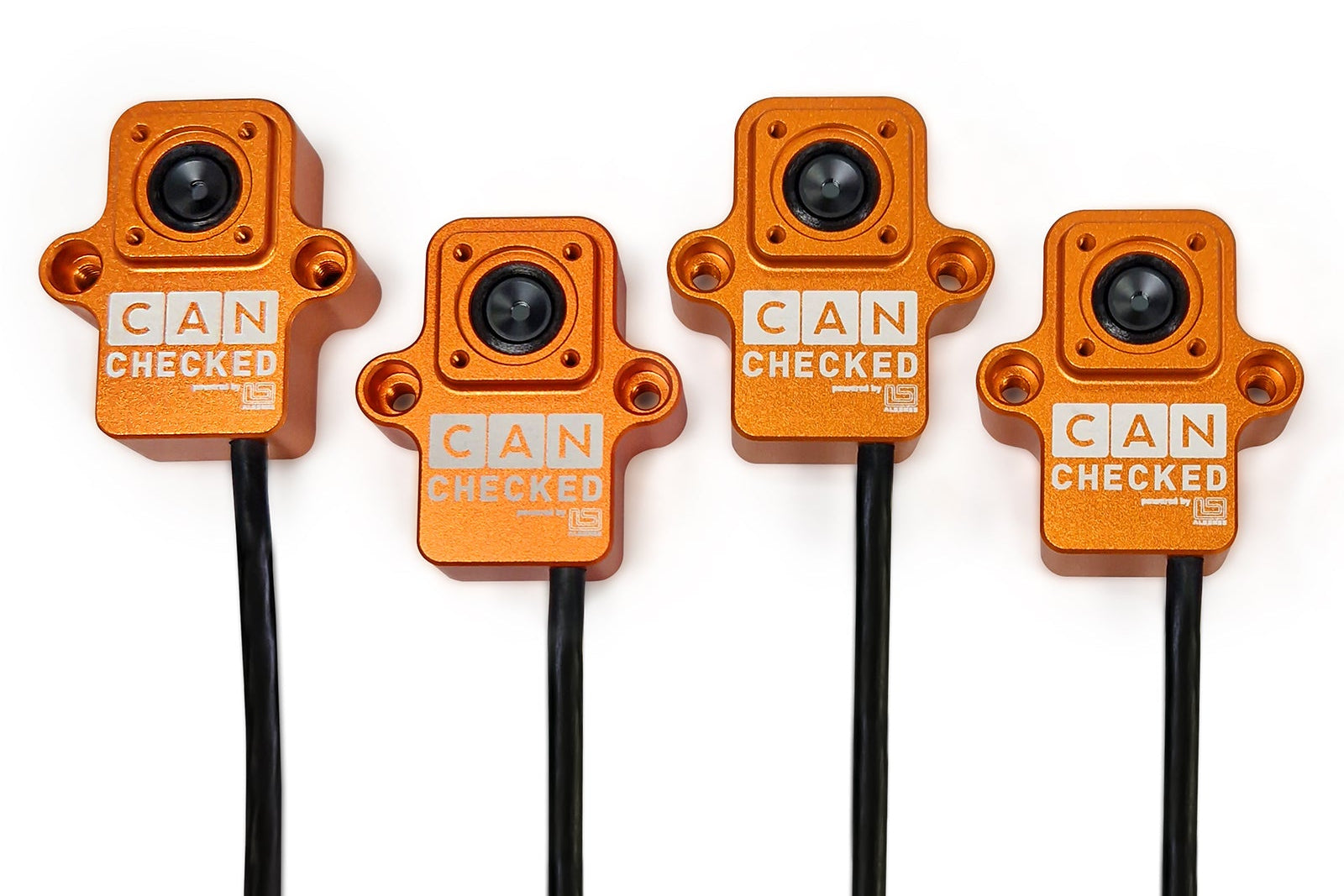

• Rugged and Compact Design
  • Durable aluminum/polyamide housing
  • IP66 rated for tough environments
  • Dimensions: 48.6 x 25.75 x 13.3 mm per sensor
  • Weight: 25g per sensor

  • Operating temp: -40° to 85°C
• Also available separately is the sensor protection lens kit: Available to enhance durability and protection

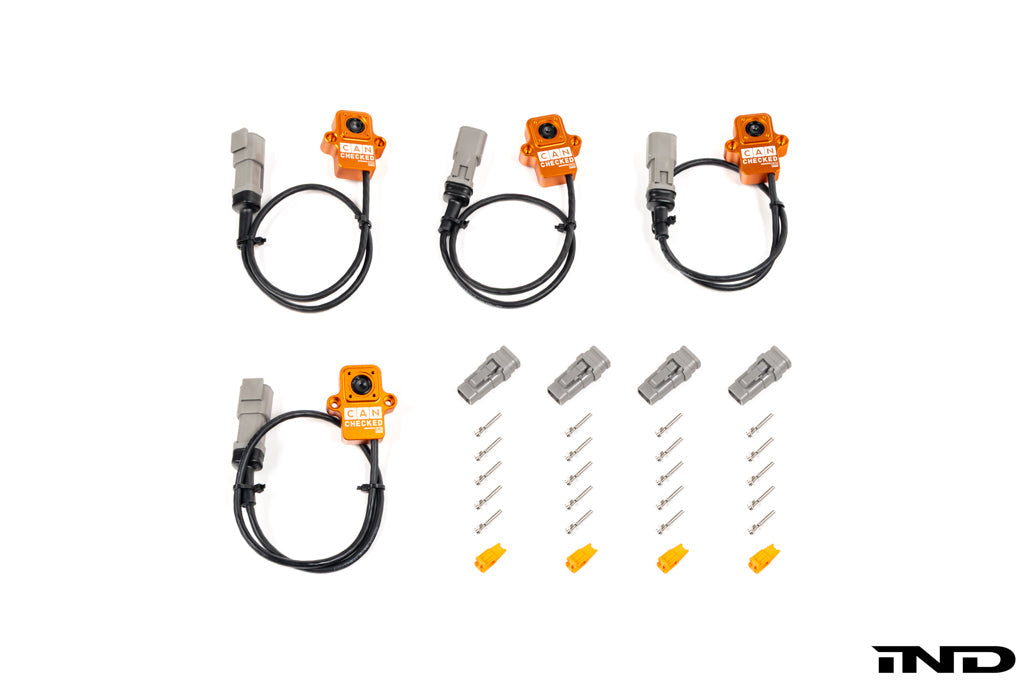

What’s Included

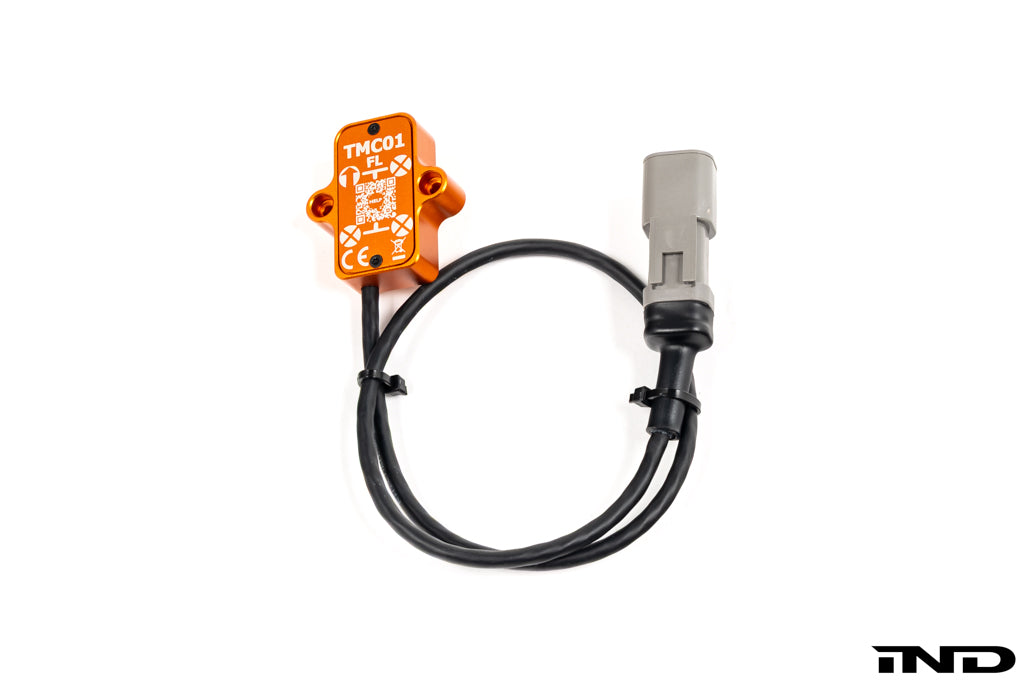

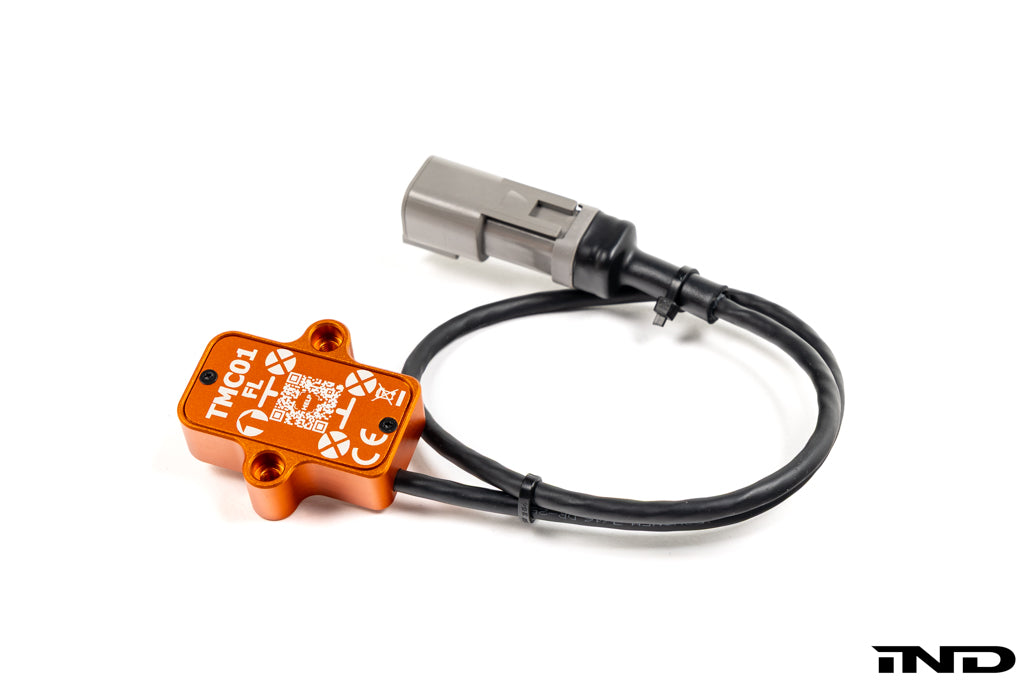

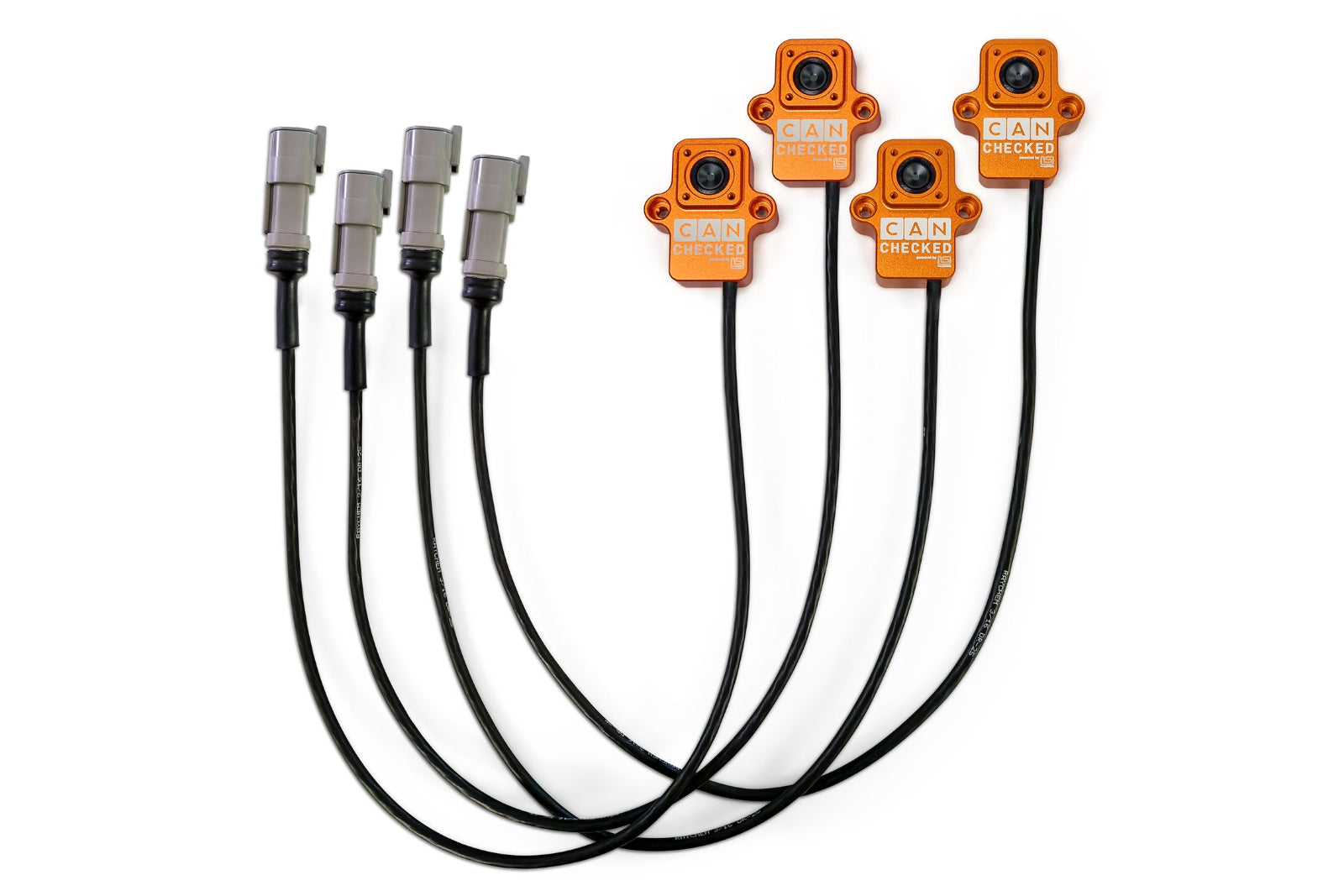

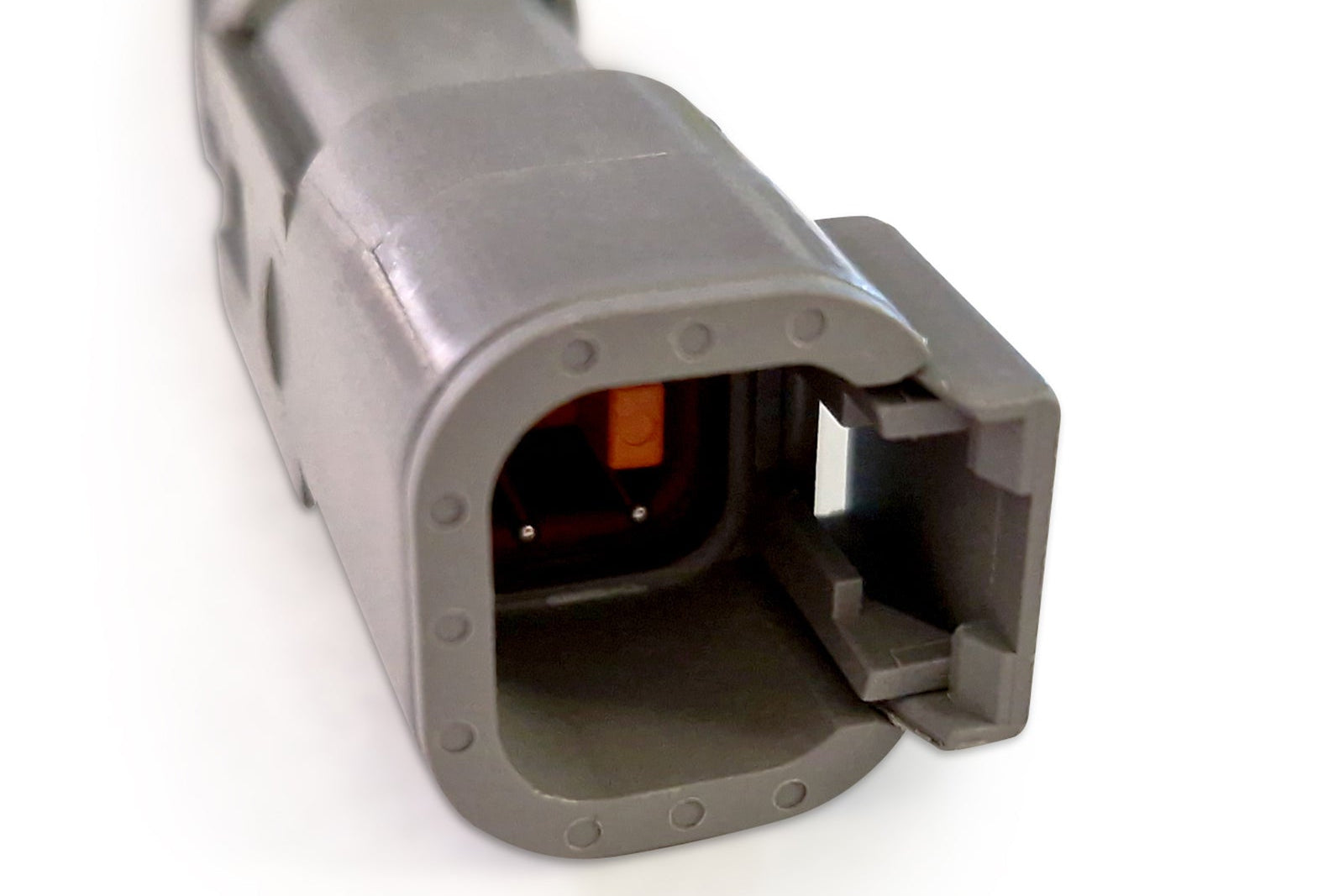

• 4x BMC01 Infrared Temperature Sensors with 0.5m AWG22 cables and DTM04-4P female connector housing with male pins
• 4x DTM06-4S male connector housing with female socket and lock sets
