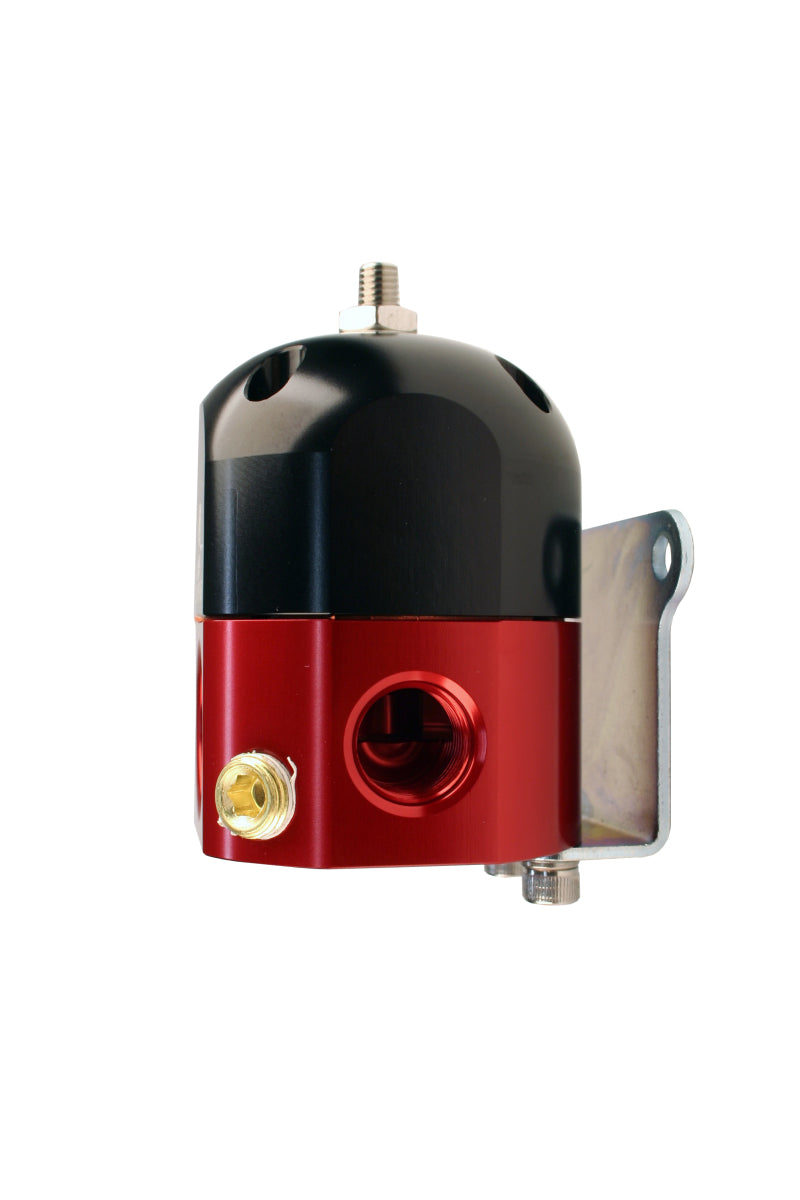

Aeromotive A1000 Carbureted Bypass Regulator

Aeromotive A1000 Carbureted Bypass Regulator

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or "blow-through" supercharged engines.
Base fuel pressure adjustable from 3-15 PSI.

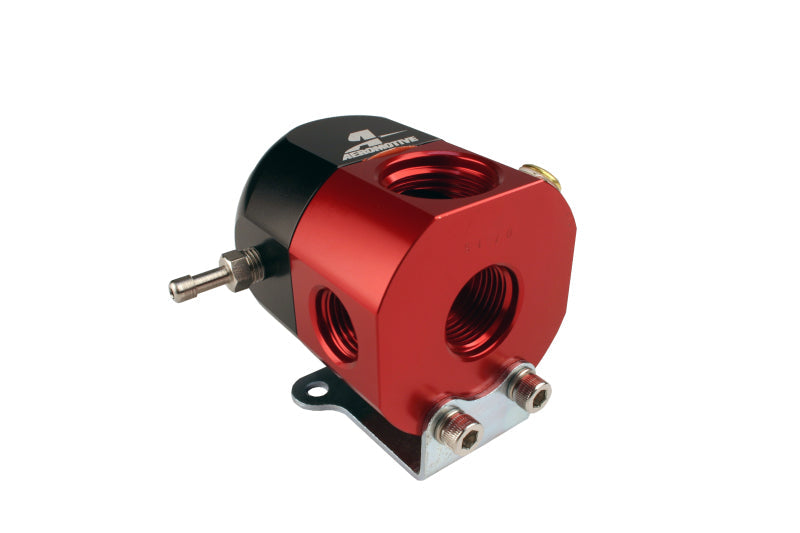

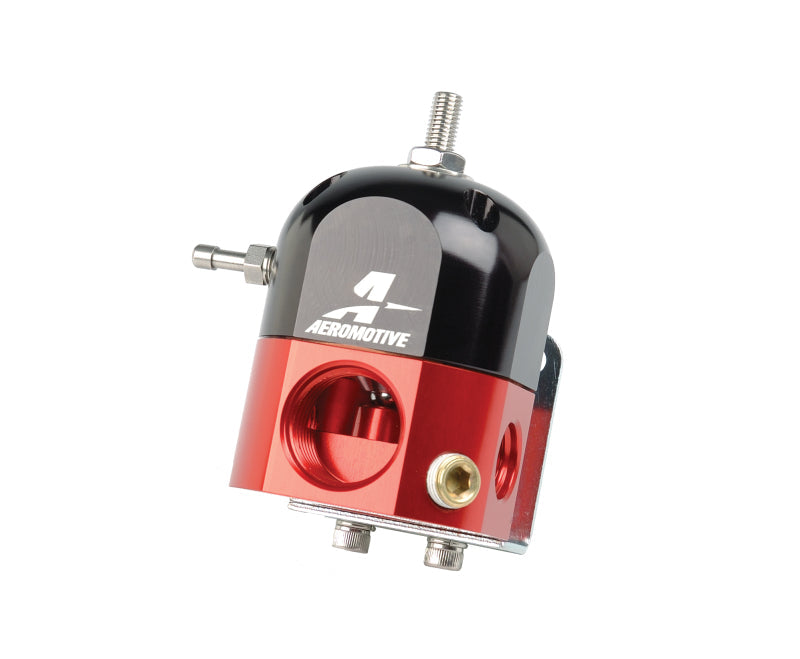

(1) ORB-10 inlet port and (1) ORB-08 return port.
P/N 13204 provides (2) ORB-06 outlet ports and 1/8" NPT gauge port.
Fuel pressure rises on a 1:1 ratio when referencing boost.
Bypass design provides the ultimate, dynamic fuel delivery system.
Ideal for converting from fuel injection to carburetion using the stock, in-tank pump.
EFI conversions will require a larger-than-stock return line for proper low pressure control.

Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
