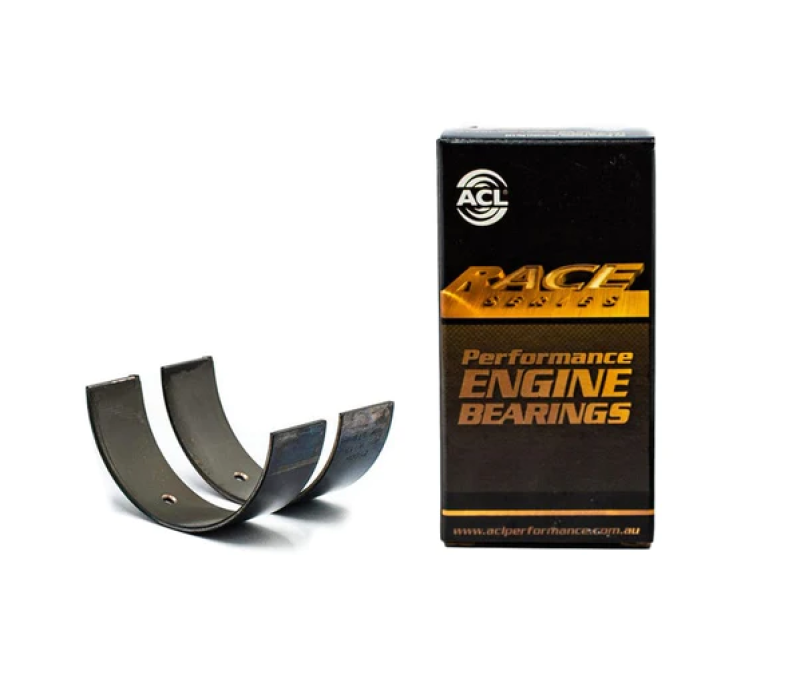

ACL Race Rod Bearing Set - Toyota 3SGE 3SGTE Size: STD

ACL Race Rod Bearing Set - Toyota 3SGE 3SGTE Size: STD

$79.36 USD
$79.36 USD
Sale Sold out
Shipping calculated at checkout.

ACL Race Rod Bearing Set - Toyota 3SGE 3SGTE Size: STD

ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures.  Each ACL race bearing design features the following:

  • Large chamfer to accomodate larger crankshaft fillets
  • 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
  • Increased crush and tighter wall tolerance for better seating
  • Improved overlay and reduced thickness for increased fatigue strength
  • Hardened steel backing to maintain crush under high loads and temperatures

*** Price is for 1 COMPLETE SET OF ROD BEARINGS FOR 1 ENGINE ***


Part Number 4B8366H 4B8366HX
Available Sizes

STD, .025, .25, .50

STD
Oil Clearance Standard + 0.001" Extra
Half Type Identical Halves Identical Halves
Material Tri-metal hardened steel backs Tri-metal hardened steel backs
Min. Std. Shaft Size 1.8892in / 47.985mm 1.8892in / 47.985mm
Max. Std. Shaft Size 1.8898in / 48.000mm 1.8898in / 48.000mm
Min. Std. Tunnel Size 2.008in / 51.004mm 2.008in / 51.004mm
Max. Std. Tunnel Size 2.0088in / 51.024mm 2.0088in / 51.024mm
Max Wall at Crown 0.0586in / 1.488mm 0.0581in / 1.475mm
Max. Overall Length 0.8386in / 21.30mm 0.669in / 17mm
Notes


Vehicle Fitments:

Year Make Model Submodel
1988 - 1992 Toyota Celica All Trac
1986 - 1993 Toyota Celica GT, ST, GTS
1993 Toyota Celica GTS All Trac
1986 Toyota Celica Supra
1991 - 1995 Toyota MR2 Base, Turbo
