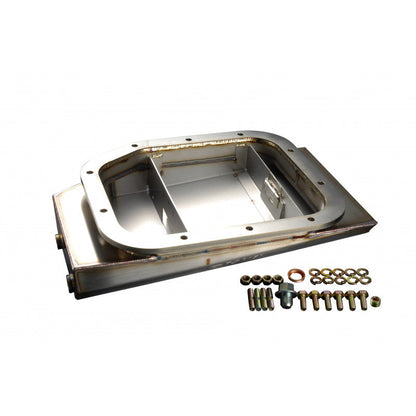

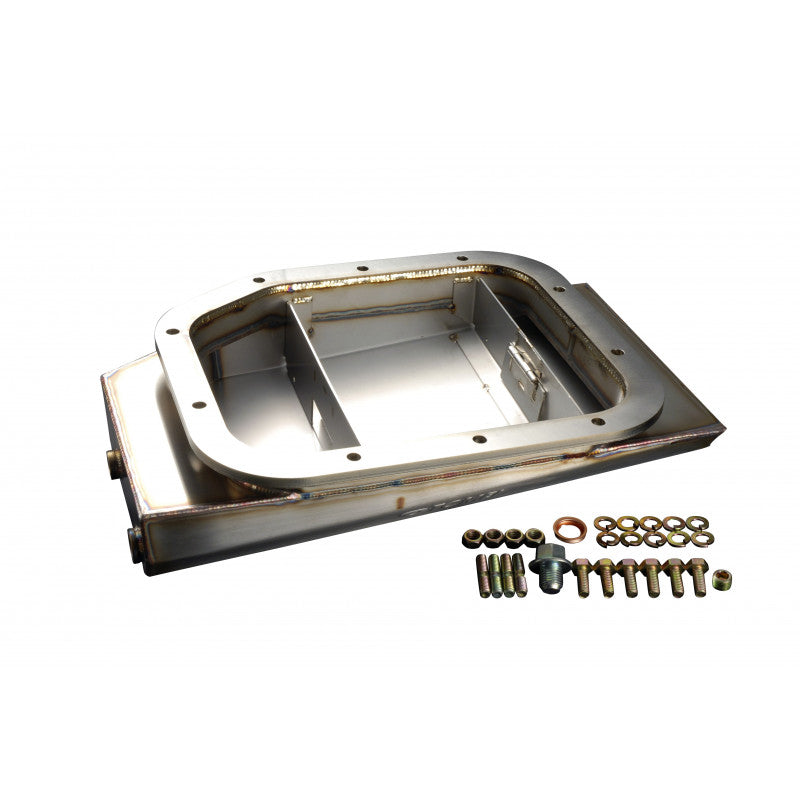

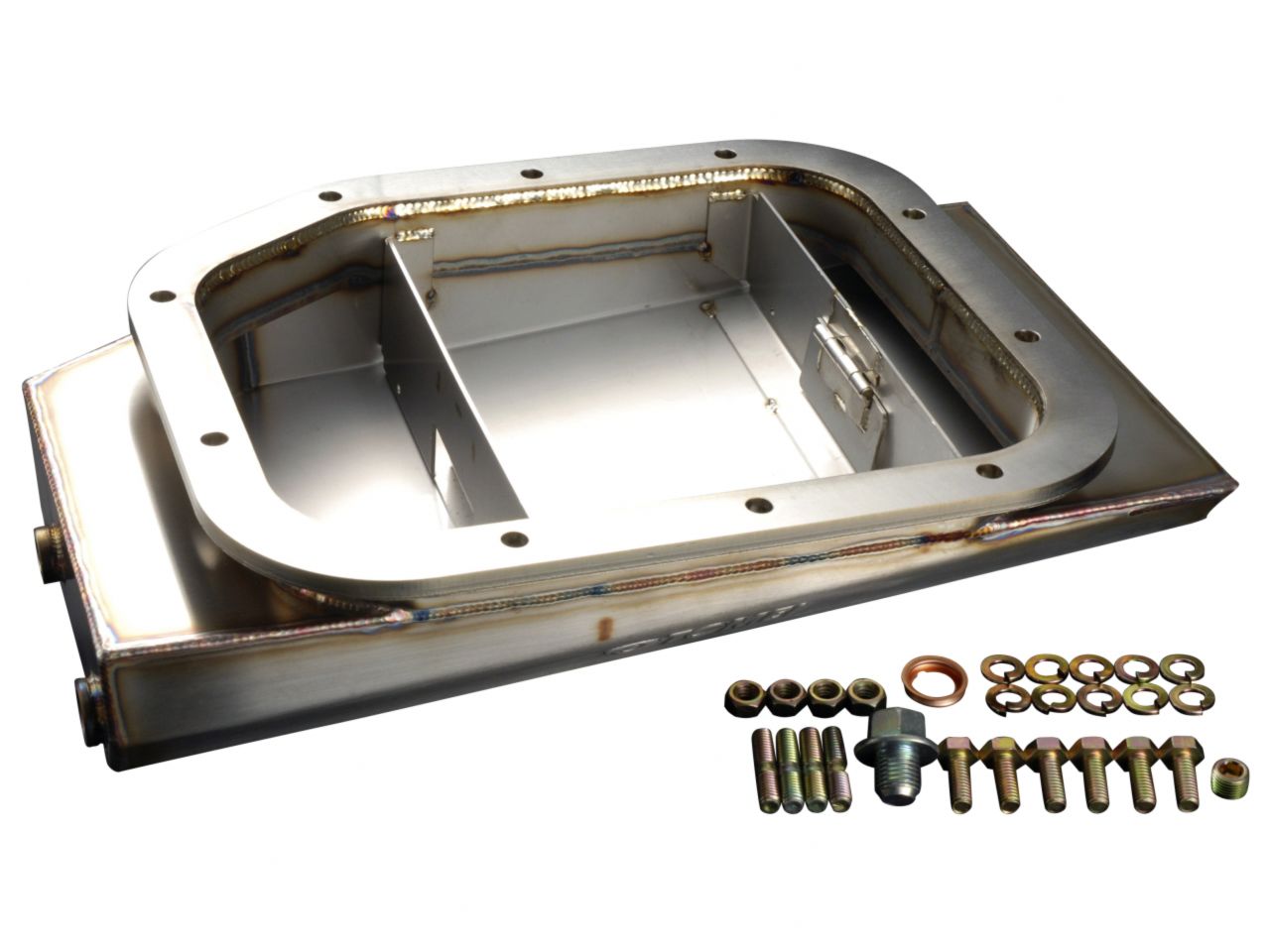

Tomei Oversized Oil Pan SR20DET Ps13/s14/s15

OVERSIZED OIL PAN SR20DE(T) PS13/S14/S15 (Previous Part Number 11111R520)

In drifting, circuit running or drag racing, the higher G forces of both vertical and horizintal will cause bad oil circulation due to the oil pickup not having adequate access to oil during cornering forces. This can cause engine failure if the lack of oil is a constant problem. We have developed this oversized oil pan for the SR20 and used it on our own N2 series Silvia race car in the past. Race proven with an extra 600cc increased capacity while not affecting the distance to the ground. With the added internal swing baffle plates will help with improved oil circulation.

Note

• 600cc Increased Capacity?
• Has Oil Temp Sensor Attachment (PT1/8)
• Non compatible with N14 Pulsar engines.
• Category: Oil Lubrication Oil Pan
• Engine: SR20DE, SR20DET
• Weight (lb): 6
• Dimension (inch): 12*11*6
• Application: (R)PS13/S14/S15


2 piece partition swing plate design helps with the stable oil supply.
