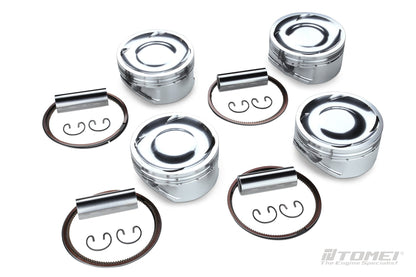

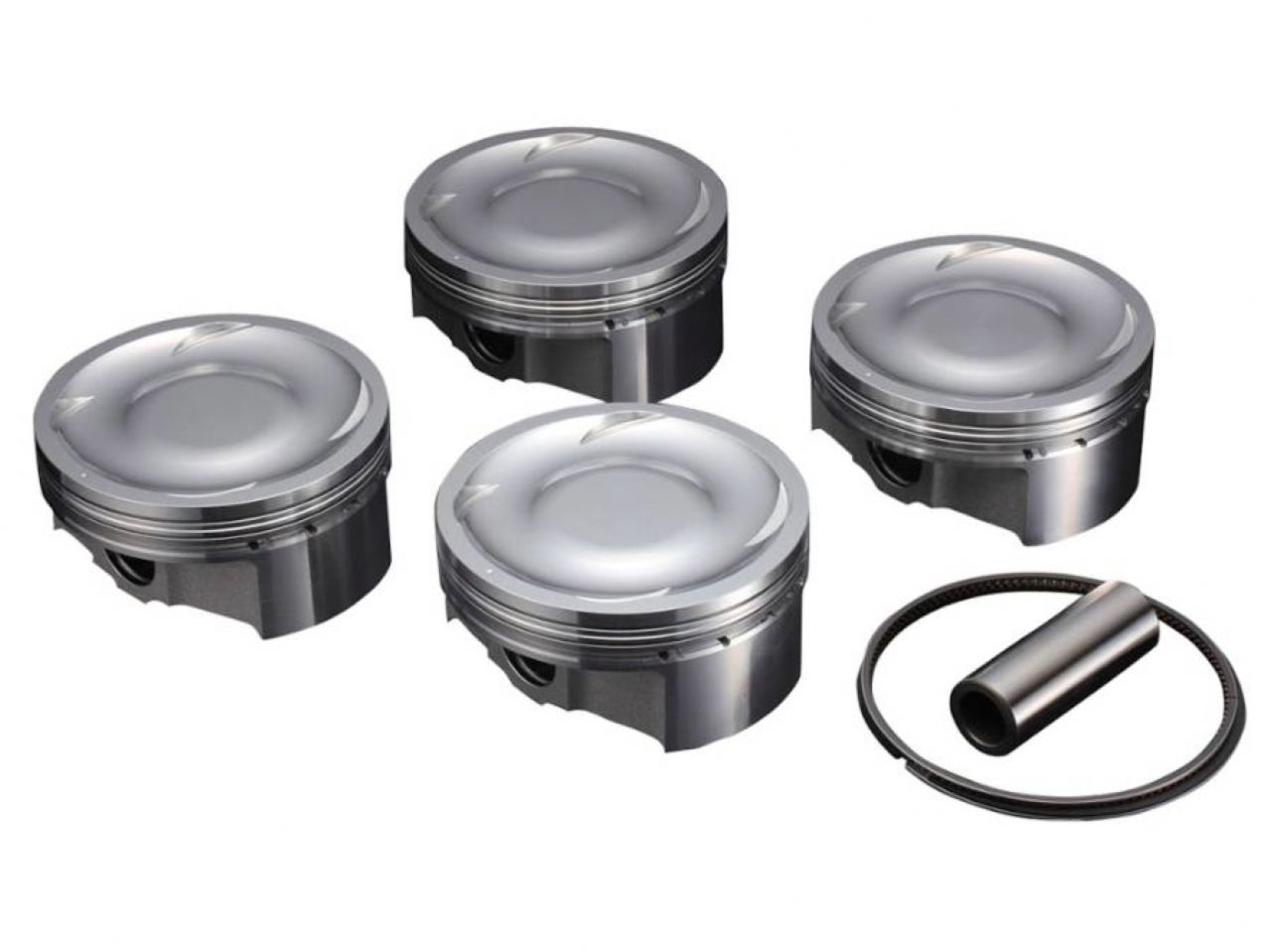

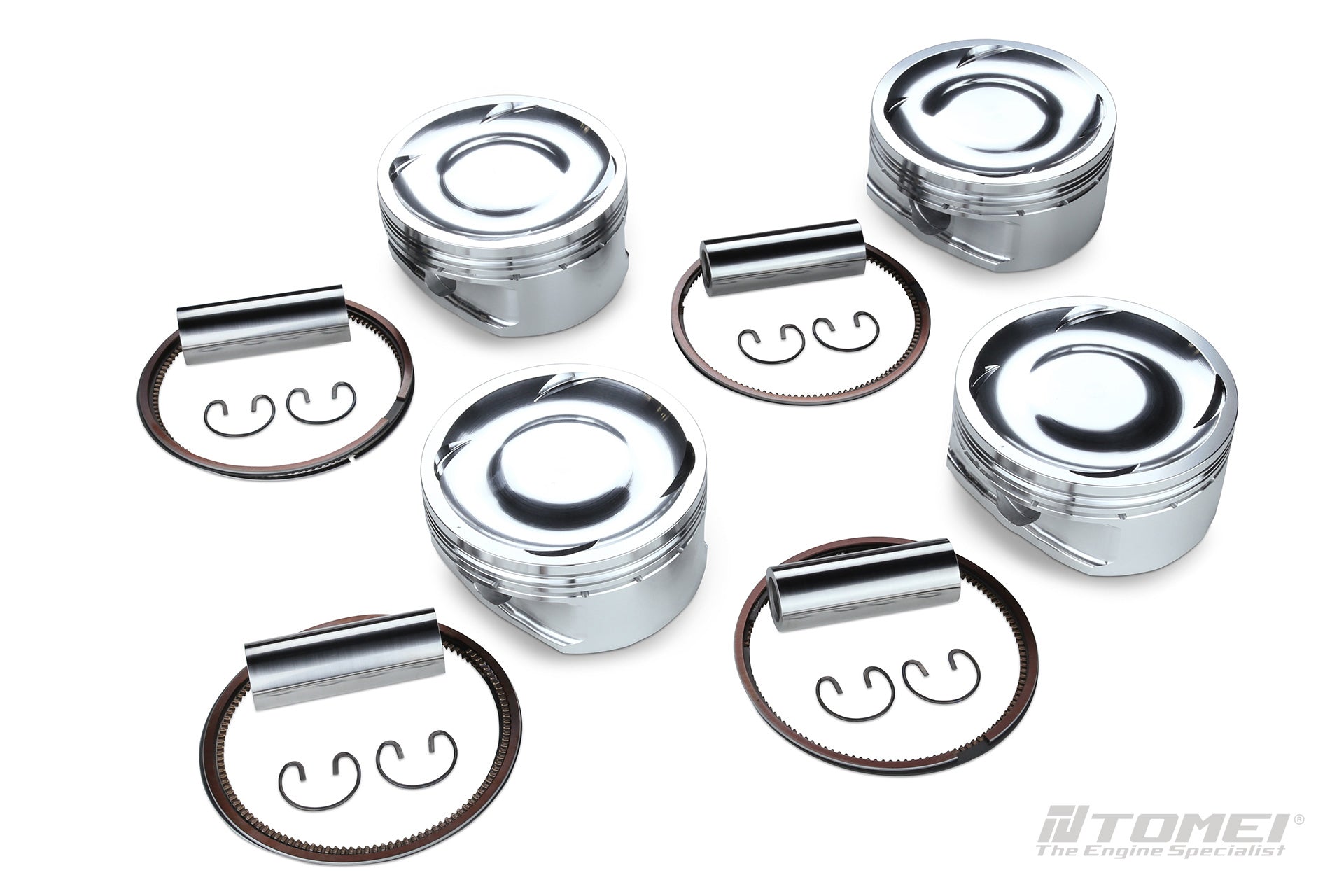

Tomei Forged Piston Kit EJ25
Tomei Forged Piston Kit EJ25
Regular price
$1,540.00 CAD
Regular price
$1,711.00 CAD
Sale price
$1,540.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Forged Piston Kit EJ25
Category: Cylinder Block Piston
| Category | Engine | Parts Number |
| 99.75mm CH30.70 (STD/2.6) | EJ25 | TA202A-SB02A |
| 99.75mm CH30.70 (STD/2.6) CP | EJ25 | TA202A-SB02AP |
| Part Number | TA202A-SB02AP | TA202A-SB02A |
| BORE (mm) | 99.75 (OEM +0.25) |
99.75 (OEM +0.25) |
| PIN DIA. (mm) | 23 | 23 |
| PIN LENGTH (mm) | 64 | 62 |
| CLIP INNNER DIA. | 23 | 23 |
| VALVE RECESS | WITH |
WITH |
| COMP.HEIGHT (mm) | 30.70 (OEM ±0.0) |
30.00 (OEM ±0.0) |
| PISTON DOME VOL. (cc) | -18.8 | |
| PISTON WEIGHT (g) | 390 | |
| PIN WEIGHT (g) | 130 | 133 |
| TOTAL WEIGHT (g) | 520 | |
| TOP RING (mm) | 1.20 x 3.50 |
|
| SECOND RING (mm) | 1.20 x 4.0 |
|
| OIL RING (mm) | 2.0 x 2.70 | |
| MATERIAL | A2618 | A4032 |
