CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 726 0DEPJ

CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 726 0DEPJ

$185.00 CAD
$211.00 CAD $185.00 CAD
Sale Sold out
Shipping calculated at checkout.

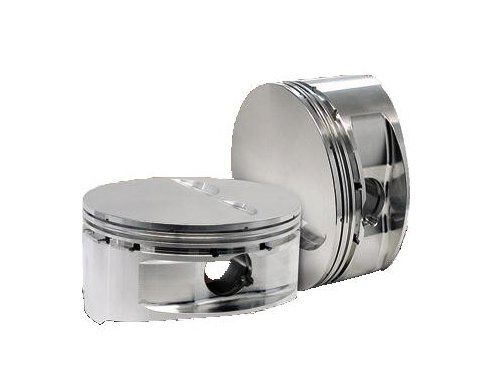

Small Block Chevy LS1 Piston

  • SBC LS1 Flat Top & Dish
  • Designed on X-style forging to clear reluctor wheel
  • Fit LS1, LS2 and LS6 heads
  • Designed for shorter wrist pins
  • Pinfitting included at no cost
  • Chamfered pins and wire locks included
  • Accumulator and anti-detonation grooves included
  • Designed for back-cut rings
  • Double pin oilers, force fed from oil ring
  • Pick lock grooves for easy lock removal
  • Custom skirt cam and barrel shapes
  • Supplied with Wire Locks and 927×2.250 Pin (106g)
  • CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
  • Individual CP Piston 10 Gas Ports per Piston Supplied with .927 x 2.500 Pin (118g). For 1200 series optional 98g pin available Supplied With Double Spiral Locks .010 Deck Clearance with 3.480 Stroke
  • 2nd Ring: 0.043
  • Bore: 4.035
  • Comp Height: 1.000
  • Dome VR CC: F.T. -5cc
  • Gas Ports: Yes
  • Oil Ring: 3.0
  • Rod: 6.250
  • Stroke: 3.500
  • Top Ring: 0.043
  • Weight: 342w/ 2.020/1.600 Valve Milled Head
