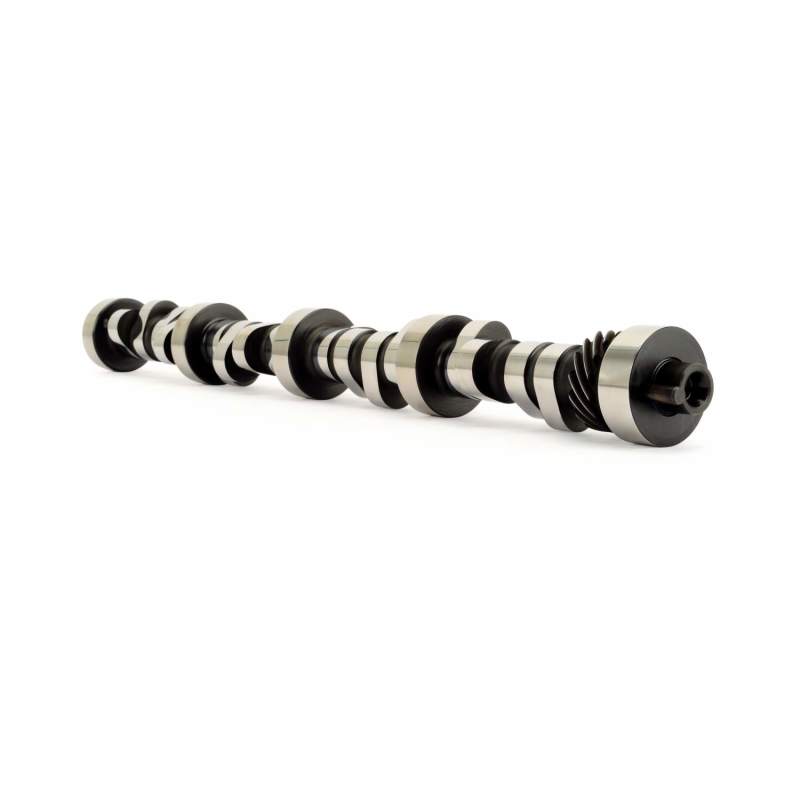

Comp Cams Camshaft, Fw Ford 269QIO8

Comp Cams Camshaft, Fw Ford 269QIO8

$993.00 CAD
$1,035.00 CAD $993.00 CAD
Sale Sold out
Shipping calculated at checkout.
  • Grind Number:269QIO8
  • Lifter Type: Hydraulic Roller
  • Description: HYDRAULIC - Best choice for smaller c.i. applications with very good heads. Extremely wide power rang. 1800+ stall.
  • Engine Family: Ford 221-302 C.I. 8 CYL. 1963-1995 (Includes 221, 260, 289 & 302 C.I.)
  • Cam Family: 4-PATTERN O.E. Hydraulic Roller Camshafts


Specifications:

  • RPM Range: 1700 to 6300
  • Valve Timing: .006
  • Lobe Separation: 108.5 / 107.5°
  • Intake Centerline: 105 / 104°
  •  Intake
    • Valve Lash: Hyd.
    • Duration: 271 / 269
    • Duration @ .050" Lift: 219 / 217
    • Valve Lift: .603 / .600
    • Lobe Lift: .399 / .399
  •  Exhaust
    • Valve Lash: Hyd.
    • Duration: 283 / 281
    • Duration @ .050" Lift: 229 / 227
    • Valve Lift: .590 / .587
    • Lobe Lift: .389 / .389
